How to Choose Materials for Custom Electronic Enclosures

A custom electronic enclosure can look like a simple box from the outside.

Four walls.
A cover.
Some holes.
A few screws.
Maybe a logo on the surface.

But when I sit with a drawing from a customer, I never see only a box. I see heat trapped inside. I see a PCB that needs protection. I see cables entering from one side. I see a worker opening the cover for maintenance. I see a product traveling in a carton across the sea. I see one small material decision quietly affecting the whole project.

That is why material selection is one of the most important decisions in custom enclosure design.

Choosing materials for custom electronic enclosures depends on the working environment, heat dissipation, EMC/EMI shielding needs, mechanical strength, surface finish, production method, budget, and customization requirements. There is no single best material. There is only the right material for the real application.

I have seen customers choose plastic because it looked cheaper. Then they found the heat was too high.

I have seen customers choose stainless steel because it sounded stronger. Then the enclosure became too heavy and too expensive for the project.

I have also seen customers choose aluminum because they liked the surface finish. Then we had to remind them that anodizing may affect electrical contact if grounding points are not handled well.

This is where enclosure design becomes interesting.

It is not only about material names. It is about trade-offs.

A material can be strong but heavy.
A material can be light but weak under heat.
A material can be beautiful but expensive to finish.
A material can be cheap in the beginning but costly after rework.

When I judge a material choice, I do not ask, “Which material is best?” first. I ask, “What problem must this enclosure survive after the customer receives it?”

That one question changes everything.

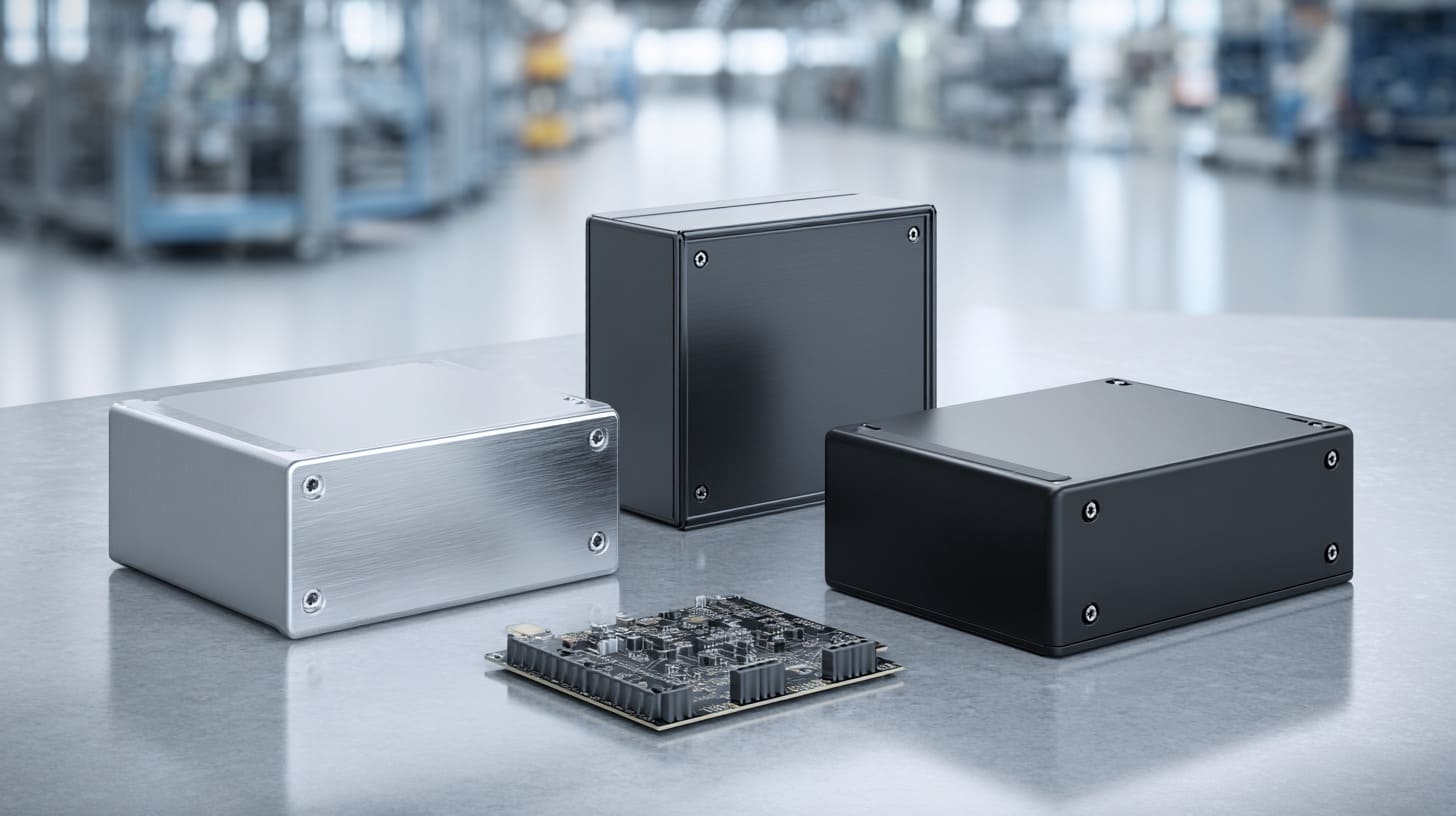

What Are the Main Material Options for Electronic Enclosures?

Most custom electronic enclosures use three broad material groups: aluminum, steel, and plastic.

That sounds simple. But inside these three words, there are many choices. Aluminum can be extruded, die-cast, bent, or CNC machined. Steel can be carbon steel or stainless steel. Plastic can be ABS, polycarbonate, PETG, or other engineering plastics.

Each material has its own personality.

Aluminum feels light and clean.
Steel feels strong and stable.
Plastic feels flexible and cost-friendly.

But I never choose based on feeling alone.

For a real custom enclosure project, I look at where the product will be used, how much heat it creates, how strong the housing must be, how many pieces the customer needs, and how much customization is required.

Common enclosure materials overview

Here is a practical look at the main options I often discuss with customers.

Material	Common Types	Main Strength	Main Weakness	Typical Use
Aluminum	Extruded, die-cast, CNC, sheet aluminum	Lightweight, good heat dissipation, clean finish	Higher cost than basic plastic or steel sheet	Industrial electronics, Raspberry Pi cases, control boxes, sensor housings
Carbon steel	Sheet metal steel	Strong, cost-effective, easy to fabricate	Can rust without good finish	Indoor industrial control boxes, equipment housings
Stainless steel	304, 316	Corrosion resistance, strong, premium look	Higher cost, harder to process	Food equipment, marine areas, chemical environments
ABS plastic	Molded or machined	Low cost, easy to shape	Lower heat resistance and weaker UV performance	Consumer electronics, indoor devices
Polycarbonate	Molded or machined	Strong impact resistance, better outdoor use	More expensive than ABS	Outdoor electronics, protective housings
PETG	Sheet or formed parts	Clear, tough, easy to process	Not ideal for high heat	Covers, panels, light-duty protective parts

Aluminum: the balanced choice for many custom projects

Aluminum is one of the materials I recommend most often for custom electronic enclosures.

It is not because aluminum is always perfect. It is not.

But aluminum gives a good balance between strength, weight, surface finish, heat control, and customization. This is why many Raspberry Pi cases, industrial controllers, communication boxes, and small electronic housings use aluminum.

For example, an extruded aluminum enclosure works well when the product needs a clean profile and fast customization. We can cut the extrusion to length. We can machine holes. We can print or engrave the logo. We can add end plates. This is very useful for small and medium batch projects.

CNC aluminum is more flexible for complex shapes. But the cost is higher.

Die-cast aluminum is good for larger volume and more complex housing shapes. But tooling cost must be considered first.

Aluminum Process	Best For	Cost Logic	My Practical View
Extrusion	Long profile enclosures, electronic modules	Lower tooling than die casting	Good for many OEM projects
CNC machining	Prototypes, small batches, complex detail	Higher unit cost	Good when the design is not stable yet
Die casting	Larger batches, complex shapes	Higher tooling, lower unit cost later	Good after the design is confirmed
Sheet aluminum	Simple boxes, panels, brackets	Flexible and practical	Good for custom industrial orders

When I see a customer choosing aluminum, I usually check whether they need heat control, custom cutouts, a nice finish, or stronger branding. If they only need a simple low-cost indoor box, aluminum may be more than they need.

That is the kind of small judgment that saves money.

Steel: strong but not always convenient

Steel is very useful when strength and cost matter.

A sheet metal steel enclosure can be bent, welded, powder-coated, and used in many industrial projects. It gives a strong structure. It also feels solid in the hand.

But steel is heavier than aluminum. It also needs good surface treatment because carbon steel can rust. If the enclosure will be shipped in large quantities, the extra weight can increase shipping cost. If the enclosure will be used outdoors, finish quality becomes more important.

Stainless steel is another story.

It is strong and corrosion-resistant. It is often used in wet, chemical, food, or marine environments. But it is also more expensive. It is harder to cut and process. It may not be necessary for many normal electronic products.

This is where many buyers overbuy protection.

They hear “stainless steel,” and they feel safe. I understand that feeling. But if the product is used in a clean indoor control room, stainless steel may not give enough extra value to justify the cost.

Plastic: flexible, light, and easy to misunderstand

Plastic enclosures are common in electronics. They are light, easy to shape, and cost-friendly in high-volume production.

ABS is popular because it is affordable and easy to mold. Polycarbonate is tougher and better for impact resistance. PETG is useful for covers or clear parts.

But plastic is not magic.

Plastic may have weaker heat dissipation. It may need extra EMC shielding. It may deform under heat. It may age under UV exposure if the wrong grade is used.

For some consumer electronics, plastic is the smart choice. For a high-power industrial device, plastic may become a problem unless the design is carefully controlled.

When each material is typically used

A simple way to think about it is this:

Application	Possible Material	Why It Makes Sense
Raspberry Pi case	Aluminum, ABS, PC	Aluminum helps heat. Plastic lowers cost.
Industrial controller	Aluminum, steel	Strength and heat control matter.
Outdoor sensor box	Aluminum, PC, stainless steel	Weather, UV, and sealing matter.
Indoor junction box	ABS, steel, aluminum	Cost and protection level decide the choice.
Marine or chemical area	Stainless steel, coated aluminum	Corrosion resistance is critical.
Consumer device housing	ABS, PC	Light weight and shape flexibility matter.

The first material discussion is always a little like choosing shoes for a trip. You do not ask, “Which shoe is best?” You ask, “Where am I walking?”

That same thinking becomes even more important when we talk about the working environment.

How Does the Application Environment Affect Material Choice?

The working environment is often the place where wrong material choices are exposed.

A drawing can look perfect on the screen. A sample can look beautiful on the table. But the real environment does not care about the drawing. It cares about heat, water, dust, oil, salt, sunlight, vibration, and careless hands.

I learned this from many custom enclosure projects.

A customer once told me the enclosure would be used “indoors.” That sounded easy at first. Then we asked more questions. The enclosure was actually placed near a machine. There was oil mist. There was dust. There was occasional cleaning water. The room was indoor, yes. But the condition was not friendly.

That changed the material conversation right away.

Indoor vs outdoor environments

Indoor use does not always mean easy use.

Some indoor environments are clean and stable. Others are dirty, hot, wet, or full of oil. Outdoor use also has different levels. A box under a roof is different from a box facing direct sun and rain every day.

Environment Factor	Why It Matters	Material Concern
Temperature	Heat can soften plastic or affect seals	PC or aluminum may be better than ABS
Humidity	Moisture can cause corrosion or electrical risk	Coating, sealing, stainless steel, or plastic may help
UV exposure	Sunlight can age some plastics	UV-stable PC or coated metal may be needed
Dust	Dust can enter vents or gaps	Sealing and gasket design matter
Oil or coolant	Surface and gasket materials may degrade	Metal and proper seals may be needed
Salt spray	Corrosion risk increases	Stainless steel or special coating may be needed

The mistake I often see is that buyers describe the location, not the condition.

They say:

• “It is indoor.”
• “It is outdoor.”
• “It is in a factory.”
• “It is near a machine.”

These are useful. But they are not enough.

I need to know what the enclosure will face.

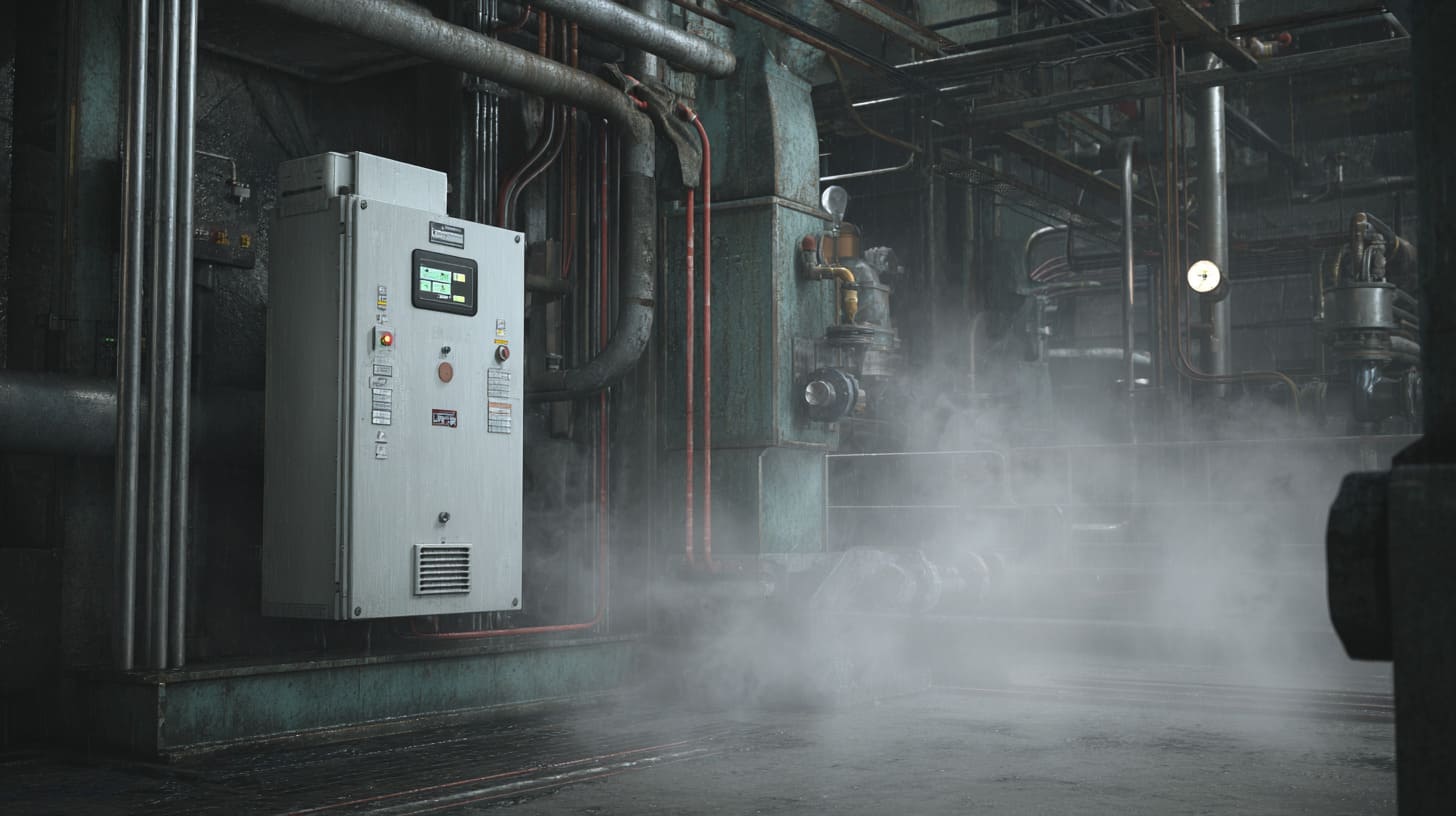

Harsh environments

A harsh environment does not need to look dramatic. It can be quiet.

A little oil every day.
A little dust every week.
A little heat every hour.
A little moisture every night.

After six months, the enclosure tells the truth.

Plastic may become brittle.
Steel may rust at the edge.
A poor coating may peel.
A gasket may lose compression.
Screws may become hard to remove.

When I review an enclosure for a harsh environment, I pay close attention to the boring details: the screw material, the gasket, the coating thickness, the cable entry, and the edge treatment. These small areas often fail before the main body fails.

Protection standards: IP ratings vs NEMA ratings

Many customers mention IP ratings or NEMA ratings when they ask for custom enclosures.

That is good. But ratings should not be used like decoration on a quotation sheet. They must match the real environment.

Rating Type	Common Focus	Simple Meaning
IP rating	Dust and water protection	Common in international markets
NEMA rating	Dust, water, oil, corrosion, indoor/outdoor conditions	Common in North America
IK rating	Impact resistance	Useful when physical impact is a concern

For example, IP65 usually means dust-tight and protected against water jets. But that does not automatically mean the enclosure is suitable for oil spray, chemicals, salt spray, or high impact.

NEMA 4X may include corrosion resistance, while NEMA 4 does not focus on corrosion in the same way. NEMA 12 and NEMA 13 are often used indoors, but they are not the same. Oil and coolant exposure can change the choice.

I usually tell customers that a rating is not the whole answer. It is a starting point for design.

Matching materials to protection requirements

Material and protection level must work together.

A plastic enclosure may meet a water protection target if the gasket and structure are good. A metal enclosure may fail if the cover design is poor. A stainless steel enclosure may resist corrosion but still leak if the seal is weak.

Requirement	Material Direction	Design Detail to Check
Outdoor rain	Aluminum, PC, stainless steel	Gasket, cover overlap, coating
Factory dust	Steel, aluminum, ABS/PC	Sealing, vent filter, cable glands
Oil splash	Steel, aluminum, stainless steel	Seal material, surface finish
Salt air	Stainless steel, special coated aluminum	Corrosion testing, screw material
High impact	PC, steel, aluminum	Wall thickness, ribs, mounting points

The environment is like the quiet customer who does not speak in the meeting. It says nothing at first. Then it sends complaints later.

So before I talk about beauty or price, I want to know what the enclosure will face every day.

And after the environment is clear, the next question usually comes fast: how hot will the electronics become?

How Important Is Heat Dissipation in Material Selection?

Heat is one of the most honest problems in enclosure design.

You can hide a poor surface finish in a product photo.
You can explain a small color difference.
You can adjust a logo position.

But heat does not listen to excuses.

If the enclosure traps heat, the PCB suffers. Components age faster. Performance becomes unstable. The customer may not complain on day one, but the problem can grow slowly inside the product.

I see this often in Raspberry Pi cases, power modules, LED controllers, communication devices, and compact industrial electronics.

A small board can create more heat than the buyer expects. A beautiful sealed box can become a warm little oven.

Thermal conductivity differences

Different materials move heat in very different ways.

Aluminum conducts heat well. Steel conducts heat less effectively than aluminum but better than plastic in many cases. Plastic is usually poor for heat transfer.

Material	Heat Dissipation Ability	Practical Meaning
Aluminum	High	Good for heat-sensitive electronics
Steel	Medium	Strong but not as efficient as aluminum
Stainless steel	Low to medium	Durable but not ideal as a heat sink
ABS plastic	Low	May trap heat
Polycarbonate	Low	Strong but still not good for heat dissipation
PETG	Low	Not suitable for high-heat housing

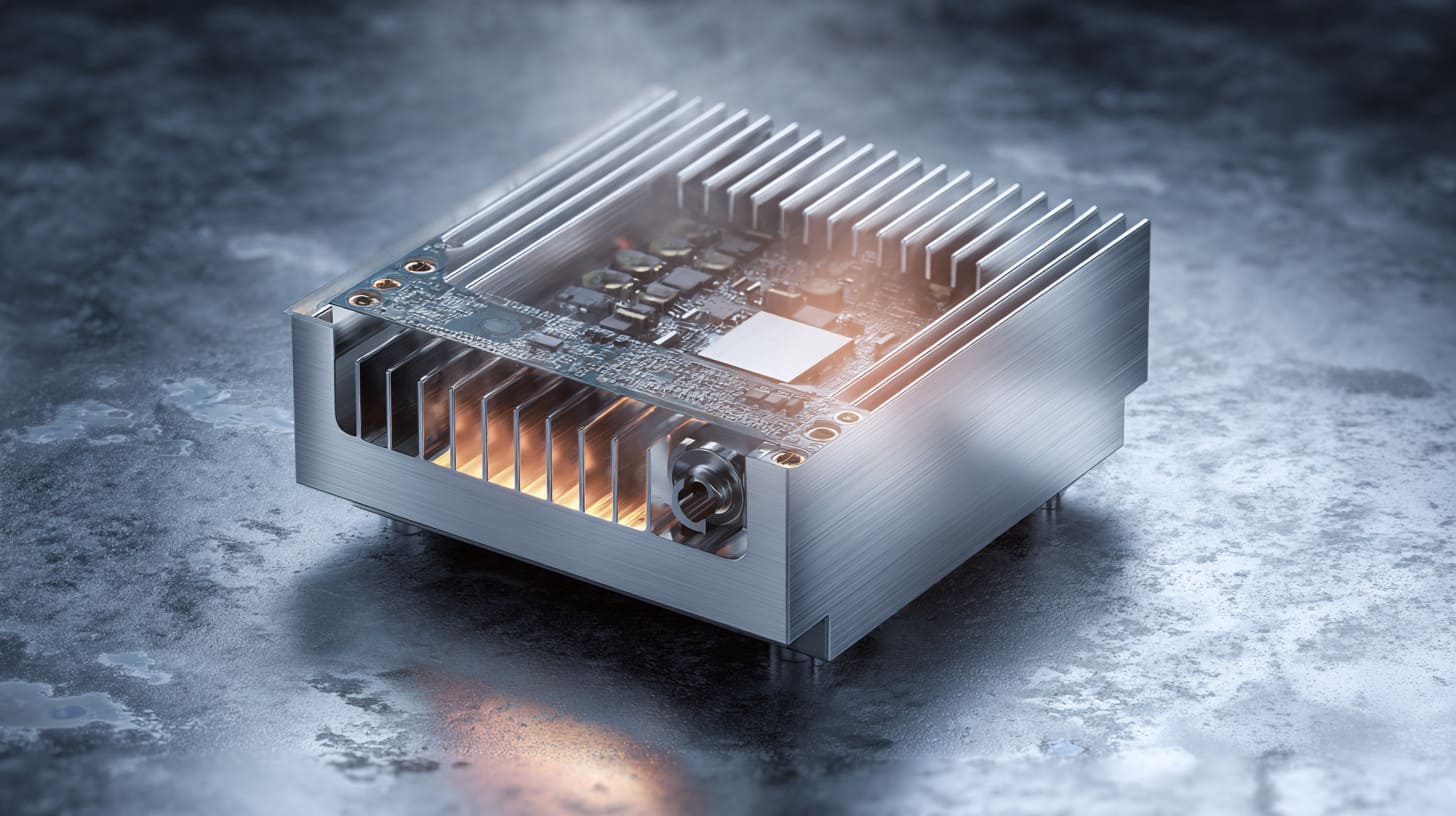

This is why aluminum is popular for Raspberry Pi cases and compact electronics.

The enclosure itself can help move heat away from the board. If the design includes contact points, thermal pads, fins, or enough wall thickness, aluminum can become part of the cooling system.

Plastic usually cannot do that unless the product has very low power or uses separate heat management.

Passive vs active cooling considerations

Cooling can be passive or active.

Passive cooling means the enclosure helps release heat without a fan. Active cooling means there may be a fan, vents, airflow path, or other cooling device.

Cooling Method	Typical Design	Benefit	Risk
Passive cooling	Aluminum body, heat sink fins, thermal pads	Quiet, reliable, simple	Needs good contact and enough surface area
Ventilation	Holes, slots, airflow path	Low cost and easy	Reduces dust/water protection
Fan cooling	Fan and vent design	Stronger cooling	Adds noise, dust, failure point
External heat sink	Added heat sink part	Good for hot components	Adds cost and assembly work

The tricky part is that cooling and protection often fight each other.

If we add vents, heat escapes more easily. But dust and water can enter more easily.

If we seal the enclosure tightly, protection improves. But heat may build up inside.

This is where things often go wrong: I do not only ask how hot the component gets; I ask whether the customer also wants the enclosure sealed, because these two requirements can pull the design in opposite directions.

When aluminum becomes necessary

Aluminum becomes very attractive when the product is compact and heat is not easy to remove.

For example:

• Raspberry Pi or similar single-board computer cases
• LED controller housings
• Power supply enclosures
• Motor control boxes
• Communication modules
• Outdoor electronics under sun exposure
• Industrial devices running for long hours

A plastic case may look fine for the first sample. But after long running time, heat can change the story.

I once saw a small device where the customer wanted a plastic housing because the first goal was low cost. The board was small. The enclosure looked simple. But the device worked all day in a warm indoor space. After we checked the power and heat position, aluminum became the safer choice. The customer did not like the higher unit cost at first. Later, he agreed because field failure would cost more.

That is the boring truth of heat.

The expensive choice may be cheaper than the failed choice.

Heat design checklist

Before confirming material, I like to ask these questions:

Question	Why I Ask
What is the heat source inside?	The material must support the real component load.
How many hours does the device run each day?	Long running time increases heat risk.
Is the enclosure sealed?	Sealing may trap heat.
Is the product used outdoors?	Sunlight can raise internal temperature.
Can the hot component touch the enclosure?	Contact can help transfer heat.
Can we use thermal pads or fins?	Small design changes may solve big heat problems.

Heat is not always visible in the drawing. But it is always present in the final product.

Once heat is under control, another invisible problem often appears: electrical noise.

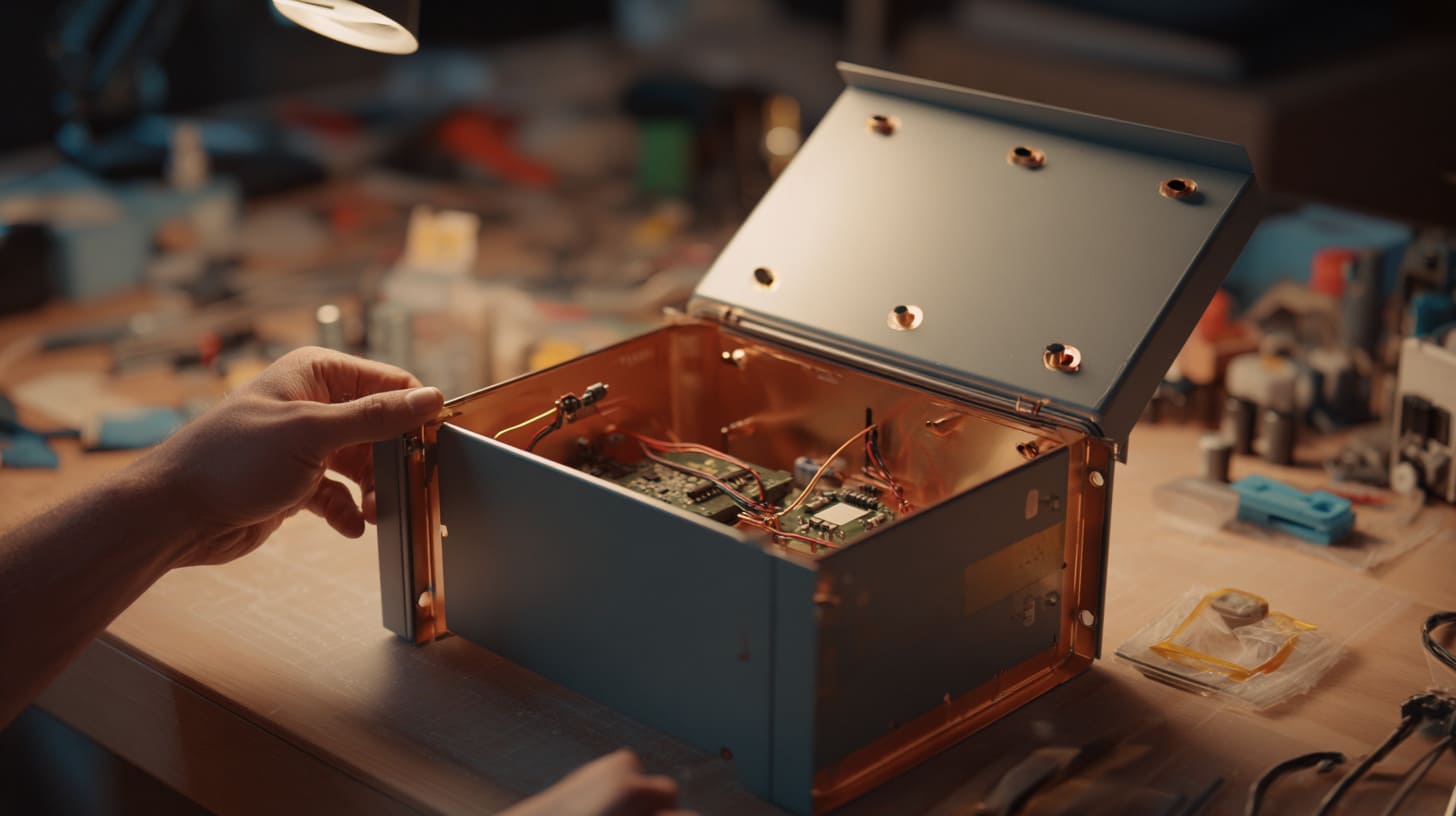

How Does EMC/EMI Shielding Influence Material Choice?

EMC and EMI are not the most exciting words in enclosure design.

Many buyers do not mention them in the first email. They talk about size, material, color, holes, logo, and price. That is normal. Those details are easier to see.

But interference problems can be painful after the product is built.

A device may restart.
A signal may become unstable.
A test may fail.
A product may work in the office but fail near other equipment.

That is when the enclosure material becomes more than a shell. It becomes part of the electrical design.

Why shielding matters

EMI means electromagnetic interference. EMC means the product can work properly in its electromagnetic environment and not disturb other devices too much.

In simple words, electronic products can both receive and create noise.

If the device is used near motors, wireless modules, power equipment, communication devices, or industrial machines, shielding may become important.

Situation	Possible Risk
Wireless device inside enclosure	Poor signal if metal blocks antenna
High-speed PCB	Noise may escape or enter
Industrial equipment nearby	External interference may affect device
Certification testing	EMC failure can delay product launch
Plastic housing	May need extra shielding treatment

The interesting part is that shielding is not always about choosing metal blindly.

Metal helps shielding. But if the product needs wireless communication, the metal enclosure may block the signal. Then we may need an antenna window, plastic section, external antenna, or special layout.

I have to think like both a factory and a user here. If I only make a beautiful metal box and the signal becomes weak, the enclosure still fails the product.

Metal vs plastic enclosures

Metal enclosures usually provide better natural shielding than plastic enclosures.

Aluminum and steel can help block electromagnetic noise. But the shielding effect depends on real design details.

A metal box with large gaps, poor grounding, painted contact areas, or loose cover joints may not perform as well as expected.

Plastic enclosures do not naturally shield well. But they may be better for wireless devices because signals can pass through more easily.

Material	Shielding Ability	Signal Friendly	Practical Note
Aluminum	Good	Poor for internal antenna	Good if grounding and seams are designed well
Steel	Good	Poor for internal antenna	Strong shielding but heavier
Stainless steel	Good	Poor for internal antenna	Used when corrosion is also a concern
ABS plastic	Poor	Good	May need coating if EMC matters
Polycarbonate	Poor	Good	Stronger plastic option
Plastic with conductive coating	Medium to good	Depends on coating area	Extra process and cost

Limitations of plastic housings

Plastic housings are easy to like.

They are light.
They can be molded into nice shapes.
They can support wireless signals.
They can reduce cost in larger production.

But when EMC matters, plastic needs help.

Common solutions include:

• Conductive coating inside the enclosure
• Copper or aluminum foil shielding
• Metal inserts or shielding plates
• Grounding design
• Conductive gaskets
• PCB-level shielding cans

Each method adds cost and process control.

If the project is small batch, conductive coating may make the price less attractive. If the project is high volume, the tooling and process may still make sense.

Conductive coatings and shielding tapes

Conductive coating is often used inside plastic enclosures. It can help improve shielding while keeping the outside plastic appearance.

Shielding tape is useful for some small areas or prototypes. But I do not like relying on tape for every project because tape quality, worker handling, and long-term adhesion can create risks.

Shielding Method	Good For	Concern
Conductive coating	Plastic housings with EMC needs	Extra cost and quality control
Metal shielding plate	Local protection	Adds assembly steps
Conductive gasket	Seams and cover joints	Compression must be stable
Shielding tape	Prototype or small area	Manual work and long-term reliability
Metal enclosure	General shielding	Signal and grounding design must be checked

When I review EMC needs, I look for the weak points first: seams, cable openings, coating breaks, antenna position, and grounding points. The enclosure body may look strong, but the small openings often decide the real result.

This is one reason why material choice cannot be separated from product function.

A strong enclosure is not enough. A cool enclosure is not enough. A beautiful enclosure is not enough.

The enclosure also needs to survive physical use.

What Role Does Mechanical Strength and Durability Play?

Mechanical strength is easy to misunderstand.

Some customers hold a sample and press it by hand. If it feels solid, they feel safe. I understand that. I also do it sometimes. The hand gives quick feedback.

But real durability is more than hand feeling.

The enclosure may be dropped during assembly.
A worker may overtighten screws.
A cable may pull on the gland.
A product may vibrate inside a machine.
A cover may be opened again and again.

This is where small design decisions become big.

Impact resistance and load requirements

Different materials fail in different ways.

Plastic may crack, deform, or whiten under stress. Aluminum may dent. Steel may bend but still hold shape. Stainless steel may resist corrosion and strength loss better in harsh environments.

Material	Impact Behavior	Load Strength	Common Concern
ABS	Fair	Low to medium	Can crack under impact or age in harsh conditions
Polycarbonate	Very good	Medium	Better impact resistance but higher cost
Aluminum	Good	Medium to high	Can dent, wall thickness matters
Carbon steel	Very good	High	Rust risk without finish
Stainless steel	Very good	High	Higher cost and processing difficulty

For many electronic products, strength does not mean making the enclosure as thick as possible.

Too thick means higher cost, more weight, harder machining, and sometimes poor assembly. Too thin means flexing, vibration, weak threads, and poor customer impression.

The right thickness is a balance.

Plastic vs metal strength comparison

Plastic and metal should not be compared only by strength. They solve different problems.

Plastic is useful when the product needs low weight, low cost, wireless signal, and shape flexibility. Metal is useful when the product needs heat control, shielding, higher strength, and a premium or industrial feel.

Need	Plastic Advantage	Metal Advantage
Light weight	Good	Aluminum is also good, steel is heavier
Impact resistance	PC performs well	Steel and aluminum perform well
Heat control	Weak	Aluminum is strong
EMC shielding	Weak without coating	Good with proper grounding
Complex shape	Good with molding	Good with die casting or CNC, but cost varies
Small batch customization	CNC plastic possible, but not always ideal	Aluminum and sheet metal often flexible

I often ask customers how the enclosure will be handled, not only how it will be installed. A product can be designed for a clean table but damaged by real workers, real packaging, and real maintenance habits.

That point is easy to miss.

Long-term durability

Durability is not only about the first month.

It includes corrosion, aging, screw wear, coating damage, and long-term assembly stability.

For outdoor or industrial use, I pay close attention to:

• Surface coating
• Screw material
• Thread strength
• Wall thickness
• Mounting points
• Gasket aging
• UV resistance
• Chemical exposure
• Vibration
• Cable entry support

A weak mounting ear can destroy a good enclosure. A poor screw boss can fail after several openings. A sharp internal corner can create stress cracks. A thin cover can bend and break the seal.

These details are not dramatic. But they decide whether the customer trusts the product after one year.

Application-based decisions

The right material changes with the application.

Application	Durability Priority	Material Direction
Handheld device	Drop resistance, grip, light weight	PC, ABS+PC, aluminum
Industrial control box	Strength, mounting, dust protection	Steel, aluminum
Outdoor electronics	UV, rain, temperature	PC, coated aluminum, stainless steel
Machine-side enclosure	Oil, vibration, impact	Steel, aluminum, stainless steel
Raspberry Pi project case	Heat, machining, branding	Aluminum, ABS, PC
Retail electronic display	Appearance, weight, cost	Aluminum, ABS, PC

Durability is not about making the enclosure look tough. It is about making sure the weak points do not embarrass the product later.

And once the material seems strong enough, we still need to ask a very practical question: how will we make it?

How Does Manufacturing Method Affect Material Selection?

A material choice that looks perfect on paper may become difficult in production.

This is one of the most common gaps between design and manufacturing.

A product engineer may choose a material based on function. A buyer may choose based on price. A factory must think about cutting, bending, machining, molding, finishing, assembly, packaging, and repeatability.

That is why manufacturing method affects material choice so much.

CNC machining

CNC machining is useful for prototypes, small batches, and complex details.

It can work with aluminum, plastic, and some other materials. It gives flexibility. It allows design changes without expensive tooling.

But CNC cost can be high when the shape is complex or the quantity is large. Each part needs machining time. More holes, pockets, threads, and tight tolerances mean more cost.

CNC Advantage	CNC Concern
Good for prototypes	Higher unit cost
Flexible design changes	Slow for large volume
Good precision	Complex parts cost more
No large mold cost	Material waste may be higher

I like CNC when the customer is still testing the design. It gives room to learn. But I do not like pretending CNC is always the best solution after the design becomes stable and volume grows.

Extrusion

Aluminum extrusion is very practical for many electronic enclosures.

The factory makes a long aluminum profile. Then the profile can be cut into different lengths. End plates can be machined. Holes can be added. Surface finish can be done.

This method works well for products with a consistent cross-section.

Examples include:

• Electronic module housings
• Power supply cases
• Raspberry Pi style enclosures
• Industrial controller boxes
• Communication device housings

Extrusion Advantage	Extrusion Concern
Good surface and strength	Shape must follow extrusion logic
Efficient for different lengths	Initial die may be needed
Good for heat dissipation	Complex 3D shapes are limited
Easy branding and machining	End plate design matters

Extrusion is often a smart middle path. It is more custom than a ready-made box but not as expensive as full die casting for many projects.

Die casting

Die casting works well for complex metal housings and larger production volumes.

It allows more shape freedom than extrusion. It can include bosses, ribs, mounting features, and detailed structures. But tooling cost is higher. Design must be more stable before opening a mold.

If the customer only needs 100 pieces, die casting is usually not the first choice. If the customer needs thousands or tens of thousands of pieces, it may become more attractive.

Die Casting Advantage	Die Casting Concern
Good for complex shapes	High tooling cost
Lower unit cost at volume	Design changes are expensive
Strong and repeatable	Tooling lead time needed
Good for branded product housings	Surface and tolerance need planning

The uncomfortable truth is that some customers want die-cast appearance with prototype quantity and prototype budget. I understand why. Everyone wants the final look early. But manufacturing has its own math.

Sheet metal fabrication

Sheet metal fabrication is common for industrial enclosures.

The process may include laser cutting, bending, welding, grinding, powder coating, and assembly. It is flexible and useful for custom sizes.

Materials can include steel, stainless steel, or aluminum sheet.

Sheet Metal Advantage	Sheet Metal Concern
Good for custom boxes	Bend radius and structure must be considered
Suitable for small and medium batches	Welding and finish affect appearance
Strong and practical	Complex curves are limited
Good for industrial use	Tolerance stack-up needs control

Sheet metal is a very honest process. It works well when the design respects bending, joints, cover structure, and finishing.

Injection molding

Injection molding is common for plastic enclosures in high-volume projects.

It can produce complex shapes with lower unit cost after tooling. But mold cost is high. Design changes can be expensive.

Plastic material choice also matters. ABS, PC, ABS+PC, and other plastics behave differently during molding.

Injection Molding Advantage	Injection Molding Concern
Low unit cost at volume	High mold cost
Complex shapes possible	Design must be stable
Good appearance control	Material shrinkage needs design care
Fast production after mold	Not ideal for very small quantities

For ODM projects, I always want to know the target quantity and product life before suggesting injection molding. A mold can be a smart investment. It can also become an expensive mistake if the design changes too soon.

Production method comparison

Method	Best Quantity	Best Material	Best Use
CNC machining	Prototype to small batch	Aluminum, plastic	Testing, complex custom parts
Extrusion	Small to large batch	Aluminum	Profile-based electronic enclosures
Die casting	Medium to large batch	Aluminum, zinc alloy	Complex metal housings
Sheet metal	Small to medium batch	Steel, stainless steel, aluminum	Industrial boxes and panels
Injection molding	Large batch	ABS, PC, ABS+PC	Plastic product housings

The factory process is not a detail after material selection. It is part of the material decision from the beginning.

And once we know how to make the enclosure, the next hard question arrives: how much should it cost?

How Do Cost and Budget Influence Material Decisions?

Cost is not only the price of material.

This is one thing I wish more buyers could see early.

A cheap material can create expensive finishing.
A low unit price can hide high tooling cost.
A light enclosure can reduce shipping cost.
A strong material can reduce after-sales problems.
A poor material choice can force a redesign.

When a customer asks, “Which material is cheapest?” I understand the question. Budget matters. Every project has limits. But I usually try to bring the conversation back to total cost, not only material price.

Material cost comparison

In a simple view, plastic is often cheaper than aluminum. Carbon steel may be cost-effective for industrial boxes. Stainless steel is usually more expensive. But this view is too simple if we stop there.

Material	Material Cost	Processing Cost	Shipping Weight	Long-Term Risk
ABS plastic	Low	Low to medium	Low	Heat, UV, shielding limits
Polycarbonate	Medium	Medium	Low	Higher cost than ABS
Aluminum	Medium to high	Medium	Low to medium	Good balance
Carbon steel	Low to medium	Medium	High	Rust if finish is poor
Stainless steel	High	High	High	Strong but costly

A steel enclosure may have a lower material price than aluminum, but it may be heavier. That affects shipping. It may also need powder coating or other surface protection. Aluminum may cost more per kilogram, but it is lighter and easier to use for heat control.

This is why unit price alone can mislead buyers.

Hidden costs

Hidden costs are quiet at first.

They usually appear after the sample stage, during mass production, shipping, assembly, or field use.

Hidden Cost	Example
Tooling cost	Injection mold, die casting mold, extrusion die
Surface finish cost	Anodizing, powder coating, painting, polishing
Machining cost	Holes, threads, countersinks, tight tolerances
Assembly cost	Inserts, gaskets, screws, labels
Packaging cost	Heavy or scratch-sensitive products need better packing
Shipping cost	Steel may increase freight cost
Rework cost	Poor material choice may need redesign
After-sales cost	Heat failure, cracking, corrosion, customer complaints

I once worked on a project where the customer wanted to reduce the wall thickness to lower cost. On paper, the saving looked nice. But the cover started to flex too much. The sealing became less stable. The product still worked, but it felt cheap in the hand.

That is a dangerous kind of saving.

The customer may not complain with words. But he may not reorder.

Balancing cost vs performance

Good cost control does not mean choosing the cheapest material. It means choosing the material that gives enough performance without waste.

Here is how I often think:

Project Need	Cost-Smart Material Thinking
Low-power indoor device	ABS or simple aluminum may work
Heat-sensitive electronics	Aluminum may reduce failure risk
Outdoor product	PC, coated aluminum, or stainless steel may be needed
Industrial control box	Steel or aluminum can be practical
High-volume plastic product	Injection molding may reduce unit cost
Small custom batch	CNC, extrusion, or sheet metal may be better

The real danger is not spending money. The real danger is spending money in the wrong place.

Sometimes a customer pays for a premium surface finish but ignores gasket quality. Sometimes he pays for stainless steel but does not need corrosion resistance. Sometimes he saves money on material but later spends more on rework.

Before I reduce cost, I try to protect the function first. A cheaper enclosure that fails the main job is not cheaper. It is only delayed trouble.

Cost is serious. But appearance also matters, especially when the enclosure becomes part of the product brand.

What Surface Finishes and Aesthetics Should Be Considered?

Surface finish is where engineering meets emotion.

A customer may not understand every technical detail inside the enclosure. But he can see the surface. He can touch it. He can feel whether the product looks professional or cheap.

For B2B buyers, this matters a lot.

If the enclosure carries their logo, it becomes part of their brand. If the surface scratches easily, the whole product feels weaker. If the color is inconsistent, the customer may question the factory’s quality control.

So I never treat surface finish as decoration only.

Common finishing options

Different materials support different finishes.

Finish	Common Material	Main Benefit	Common Concern
Anodizing	Aluminum	Clean, durable, premium look	Color difference can happen between batches
Powder coating	Steel, aluminum	Strong surface, many colors	Thickness may affect fit or grounding
Painting	Metal, plastic	Flexible colors	Durability depends on process
Polishing	Stainless steel, aluminum	Bright appearance	Fingerprints and scratches may show
Brushing	Aluminum, stainless steel	Industrial and clean look	Direction consistency matters
Silk screen printing	Metal, plastic	Logo and markings	Adhesion must be tested
Laser engraving	Aluminum, stainless steel	Durable logo	Contrast depends on material and finish

Anodizing

Anodizing is popular for aluminum enclosures.

It gives a clean and professional finish. Black anodized aluminum is very common in electronics. Silver anodizing gives a simple technical look. Colored anodizing can support branding.

But anodizing has practical limits.

Color can vary between batches. Surface defects before anodizing may become more visible after finishing. Also, anodized surfaces are not always conductive in the same way as bare aluminum. If grounding is important, we may need to leave bare contact areas or design grounding points carefully.

When I check anodized aluminum projects, I look at both beauty and electrical function. A nice black surface is good, but I do not want that surface to quietly break a grounding plan.

Powder coating

Powder coating is common for steel and aluminum sheet metal enclosures.

It gives good protection and many color options. It can help with corrosion resistance and appearance. It is also practical for industrial control boxes.

But powder coating adds thickness. If holes, grooves, sliding parts, or cover fits are tight, coating thickness must be considered. If the enclosure needs electrical contact, coating may need to be removed at grounding points.

Powder Coating Detail	Why It Matters
Coating thickness	Can affect assembly fit
Color consistency	Important for branded products
Edge coverage	Poor coverage may cause corrosion
Grounding area	Coating may block conductivity
Surface preparation	Poor prep can cause peeling

Branding and customization

For many MaidaTech customers, the enclosure is not only a protective shell. It is part of the product they sell.

That means logo and branding matter.

Common options include:

• Laser engraving
• Silk screen printing
• UV printing
• Pad printing
• Labeling
• Custom packaging
• Color matching
• Surface texture matching

Logo Method	Best For	Concern
Laser engraving	Aluminum, stainless steel	Very durable, but color contrast varies
Silk screen printing	Flat surfaces	Ink adhesion must be controlled
UV printing	Colorful logos	Surface compatibility matters
Pad printing	Curved or small areas	Setup and consistency need control
Label	Low-cost branding	May look less premium

I have seen buyers spend many hours adjusting the logo size by 1 mm. Some people may laugh at that. I do not.

For a re-brand customer, the logo is not a small detail. It is what his customer remembers.

Functional finishes

A finish can also serve a function.

It can resist corrosion.
It can reduce scratches.
It can improve insulation.
It can support cleanliness.
It can affect electrical contact.

Finish Function	Example
Anti-corrosion	Powder coating, anodizing, stainless steel polishing
Anti-scratch	Hard anodizing, textured powder coating
Electrical insulation	Plastic coating, powder coating
Conductive contact	Bare metal areas, masking before coating
Outdoor durability	UV-resistant coating
Clean surface	Brushed or polished stainless steel

The surface tells the customer a story before the product even turns on.

But surface finish only works well if the structure also supports customization. That brings us to another important question.

How to Match Material Choice with Customization Needs?

Custom enclosure projects rarely stay simple.

At first, a customer may ask for a box with a few holes. Then the real needs appear.

A USB port must move 2 mm.
A logo must sit on the top cover.
A cable gland needs more space.
The PCB standoff height changes.
The customer wants a new color.
The product needs better heat control.
The packaging needs to match the brand.

This is normal. Custom projects breathe and move.

Material choice must leave enough room for these changes.

Design flexibility

Some materials and processes are easier to customize than others.

CNC aluminum is flexible for small batches. Sheet metal is also flexible for size changes, cutouts, and mounting features. Extrusion is flexible in length but limited by profile shape. Injection molding is flexible in final shape, but not flexible after the mold is made.

Material / Process	Custom Flexibility	Best Stage
CNC aluminum	Very high	Prototype and small batch
Sheet metal	High	Custom industrial projects
Aluminum extrusion	Medium	Stable profile design
Die casting	Medium before tooling, low after tooling	Stable volume projects
Injection molding	High before tooling, low after tooling	High-volume stable design
CNC plastic	Medium to high	Prototype or small batch

For ODM customers like John, ideas often change during development. That is not a problem. Creative projects need testing. But the production method must match that reality.

I become careful when a customer wants to open a mold too early. If the PCB, port layout, or internal structure may still change, mold cost can become a trap.

Complex shapes vs simple structures

A simple enclosure can often be made with sheet metal, extrusion, or CNC.

A complex enclosure may need die casting or injection molding.

But complex is not always better.

A simple structure can be easier to assemble, easier to seal, easier to repair, and cheaper to produce. A complex structure can look beautiful but create more tooling, tolerance, and assembly risks.

Design Style	Benefit	Risk
Simple box	Lower cost, easy production	May look less unique
Extruded profile	Clean and professional	Shape is limited by profile
CNC custom body	Flexible and precise	Higher unit cost
Die-cast housing	Complex and strong	Tooling cost and design lock-in
Molded plastic shell	Good appearance and volume cost	Mold changes are expensive

What I often check is whether a design feature is needed for function or only added because it looks nice in 3D. Nice details are welcome, but every detail must pay rent in the project.

That is how I think about manufacturable design.

Custom cutouts and modifications

Electronic enclosures often need many cutouts.

These may include:

• USB ports
• HDMI ports
• Ethernet ports
• Power connectors
• Switch holes
• LED windows
• Ventilation slots
• Antenna holes
• Mounting holes
• Cable glands
• Display windows

Each hole has a cost. Each hole also has a tolerance risk.

If the cutout is too small, the connector cannot fit. If it is too large, the product looks loose or unprofessional. If the hole edge is not finished well, the product feels cheap.

Custom Feature	Material Concern
Small ports	CNC accuracy or mold accuracy matters
Large display window	Flatness and edge finish matter
Threads	Metal works better, plastic may need inserts
Repeated opening	Metal threads or inserts may help
Vent slots	Dust and water protection may decrease
Antenna opening	Material must support signal design

OEM/ODM considerations

OEM and ODM projects need more than a material suggestion.

They need support from design to sample to production.

For OEM projects, the customer may already have drawings. We must check whether the chosen material matches the drawing, function, and production quantity.

For ODM projects, the customer may only have an idea, a PCB, or a reference product. We may need to suggest structure, material, process, finish, and packaging.

Project Type	Customer Usually Provides	Factory Support Needed
OEM	Drawing, logo, material request	Manufacturing check, cost control, quality control
ODM	Idea, PCB, sample, reference product	Design advice, material suggestion, prototyping
Re-brand	Logo, color, package request	Surface finish, printing, packaging support
Industrial custom	Size, environment, mounting needs	Material, protection, structure, production control

A good material choice should support the customer’s business model, not only the product itself.

A local re-seller may care about logo and packaging.
A product engineer may care about tolerance and assembly.
A project buyer may care about delivery time.
An end-use customer may care about durability.

The enclosure must connect all these needs.

And this is also why mistakes happen so easily.

What Are the Most Common Mistakes When Choosing Enclosure Materials?

Most material mistakes do not look foolish in the beginning.

They usually sound reasonable.

“We want to save cost.”
“We want it stronger.”
“We want it lighter.”
“We want it waterproof.”
“We want it like this sample.”
“We want it ready fast.”

These are all normal requests. The problem comes when one request becomes the only thing people see.

Mistake 1: over-focusing on price

Price matters. I know this very well.

Many buyers compare suppliers from China, Vietnam, Europe, and local markets. They need competitive prices. They need margin. They need to win projects.

But if price becomes the only decision, material choice can become dangerous.

A cheaper plastic may not handle heat.
A thinner metal sheet may feel weak.
A lower coating quality may fail outdoors.
A cheaper screw may rust.
A cheaper gasket may leak.

Low-Cost Choice	Possible Later Problem
Thin wall thickness	Flexing, weak threads, poor feel
Basic plastic	Heat deformation, UV aging
Poor coating	Rust, peeling, color issues
Low-grade screws	Corrosion, stripped heads
No shielding	EMC test failure
No gasket review	Water or dust entry

The price on the quotation is only one number. The cost of failure is usually harder to see, but it hurts more.

Mistake 2: ignoring real environment

Many buyers describe the project in simple words.

Indoor.
Outdoor.
Factory.
Machine.
Consumer product.
Industrial product.

But material choice needs more detail.

For example, “outdoor” may mean under a roof in mild weather. Or it may mean direct sun, heavy rain, dust, salt air, and temperature change.

“Factory” may mean a clean assembly line. Or it may mean oil, coolant, metal dust, vibration, and daily cleaning.

The material cannot read the customer’s mind. It only reacts to the environment.

The question I ask myself before confirming material is simple: if this enclosure fails after six months, what hidden condition will probably be blamed first?

That question pushes me to ask better questions early.

Mistake 3: choosing metal without thinking about signal

Metal looks strong. Metal feels professional. Metal helps with shielding and heat.

But if the device needs Wi-Fi, Bluetooth, GPS, LTE, or other wireless signals, metal may create trouble.

A fully metal enclosure can block or weaken the signal. The solution may be an external antenna, a plastic window, a special cutout, or a different layout.

Wireless Need	Material Risk	Possible Solution
Wi-Fi inside enclosure	Metal blocks signal	External antenna or plastic window
Bluetooth device	Signal range may drop	Antenna position review
GPS module	Needs clear signal path	Non-metal area or external antenna
LTE/4G/5G module	Signal loss risk	Antenna design must be planned

This is a good example of why “stronger” does not always mean “better.”

Mistake 4: choosing plastic without thinking about heat and EMC

Plastic is easy to like. It is light and cost-friendly. It also supports wireless signals.

But if the device creates heat or needs EMC protection, plastic must be reviewed carefully.

The customer may need:

• More internal space
• Ventilation
• Heat sink
• Flame-retardant grade
• Conductive coating
• Metal insert
• Better wall thickness
• Different plastic grade

A plastic enclosure can be a smart choice. But it should not be chosen only because it is cheaper.

Mistake 5: opening tooling too early

This mistake is painful.

A customer opens a mold before the PCB design is fully stable. Then a connector moves. A screw boss changes. A wall needs more clearance. A cable port shifts. Now the mold needs modification.

That costs money and time.

For early-stage projects, I often prefer CNC samples, sheet metal samples, or simpler prototype methods before full tooling.

Project Stage	Safer Choice
Idea stage	3D model review, simple prototype
PCB not finalized	CNC or temporary housing
Function testing	CNC, sheet metal, or 3D printed sample
Design confirmed	Tooling can be considered
Stable volume demand	Mold or die casting becomes more reasonable

Mistake 6: poor communication with suppliers

This one is very real.

A customer may send a drawing but not explain the working environment.
A supplier may quote quickly but not ask enough questions.
Both sides may think the details are clear.
Then the sample exposes the gap.

Good communication saves projects.

Before quoting or production, I like to confirm:

Detail	Why It Matters
Use environment	Decides material and finish
Internal PCB size	Decides clearance and mounting
Heat source	Decides cooling design
Quantity	Decides process and cost
Surface requirement	Decides finish and logo method
Protection level	Decides gasket and structure
Certification needs	Decides material and design details
Target cost	Helps balance performance and budget
Delivery schedule	Affects process choice

A material mistake is rarely only a material mistake. It is often a communication mistake wearing a material name tag.

The better we talk early, the fewer surprises we face later.

Conclusion

Choosing materials for custom electronic enclosures is not a clean textbook decision.

It is a real project decision.

The right material must match the environment, heat, EMC needs, strength, surface finish, customization plan, production method, budget, and future use. Aluminum, steel, stainless steel, ABS, PC, and PETG can all be good choices. They can also all be wrong choices if the project conditions are misunderstood.

There is no best enclosure material for every product. There is only the most suitable material for one specific product, one specific environment, and one specific business goal.

If I had to simplify the whole process, I would think like this:

Key Question	Why It Matters
Where will the enclosure be used?	Environment decides protection needs.
How much heat will the electronics create?	Heat may push the choice toward aluminum.
Does the product need wireless signal?	Metal may block the signal.
Does the product need EMC shielding?	Plastic may need extra treatment.
How strong must the housing be?	Material and wall thickness must match use.
What quantity is needed?	Process choice depends on volume.
What surface look is required?	Finish affects cost, branding, and function.
Will the design change later?	Tooling too early can create waste.

My final check is always practical: I want the enclosure to protect the electronics, support the product brand, stay stable in real use, and still make sense in cost and production.

That sounds simple. But simple does not mean easy.

If you are developing a custom electronic enclosure, you do not need to guess the material alone. You can start with your PCB size, working environment, quantity, surface requirement, and target budget. Then we can review the trade-offs together and choose a material that fits the real project, not just the drawing.

At MaidaTech, we work with custom aluminum enclosures, plastic enclosures, sheet metal enclosures, Raspberry Pi cases, and OEM/ODM enclosure projects for B2B customers. If you already have a drawing, a sample, or even only an idea, you can send it to us for review.

A good enclosure starts with the right material.

But the right material starts with the right questions.
