What Powder Coating Really Costs in Mass Production

Powder coating looks simple from the outside.

A buyer sends a drawing. A supplier gives a quote. The finish column says “powder coating.” The price looks fine. Everyone feels safe.

Then mass production starts.

The color sample looks good, but the first batch needs extra surface cleaning. The threaded holes need masking. Some covers do not fit smoothly after coating. One color needs a new powder order. The coating factory asks for more time because the batch size is too small for their schedule. The customer waits. The engineer checks the drawing again. The purchasing manager asks why the cost changed.

I have seen this kind of situation many times in custom enclosure projects.

For aluminum enclosures, sheet metal enclosures, plastic parts with metal brackets, and OEM electronic housings, powder coating is not just a surface finish. It becomes part of the design, the tolerance, the lead time, the quality control, and the final cost.

That is why I do not like to calculate powder coating only by the coating price per unit. That number is useful, but it is not enough.

Why Do Powder Coating Costs Often Exceed Initial Estimates?

Many buyers calculate powder coating in a very direct way:

Simple Cost Thinking	Real Production Thinking
Powder coating price per piece	Preparation + masking + coating + curing + inspection
One finish equals one cost	Different materials and colors create different costs
Coating does not affect the design	Coating thickness can affect assembly and fit
Finish is the last step	Finish can delay the whole production schedule
Defects are rare	Defects can create rework, scrap, and shipment delay

This is where many custom enclosure projects lose money quietly.

The buyer may not see the extra cost in the first quotation. The engineer may not notice the risk during design. The supplier may assume the coating process is normal. But after the order becomes large, every small detail becomes expensive.

For example, one extra masking point may not matter for 10 samples. But for 3,000 enclosures, that small masking point becomes labor, checking time, and possible mistakes.

A slightly tight screw hole may not matter before coating. But after coating, the screw may feel rough. Then someone needs to clean the thread, rework the hole, or explain the issue to the customer.

From my side, I always ask one simple question before mass production: will this coating still be easy when the order quantity becomes large? If the answer is not clear, I know the first price is not the real cost yet.

What Hidden Costs Are Included in Powder Coating Beyond the Coating Itself?

Many people think powder coating cost means the powder and the spray work.

That is only one part.

Before the powder touches the enclosure, the surface already needs work. If the surface is oily, dusty, oxidized, or uneven, the coating may look fine at first but fail later. This is why a serious factory does not treat surface preparation as a small step.

This is also why a cheap coating quote can become risky. A low price may mean less preparation, less inspection, or less process control.

One thing I check carefully is whether the part really needs a “beautiful finish” or a “working finish,” because these two ideas look similar in photos but cost very differently in production.

Surface Preparation Costs That Are Frequently Ignored

Surface preparation is the quiet cost behind powder coating.

The customer usually sees the final color. The factory sees what happens before the color.

Common preparation steps may include:

• Degreasing
• Cleaning
• Sandblasting
• Grinding sharp burrs
• Removing oxidation
• Chemical pretreatment
• Drying before coating
• Checking surface condition before spraying

For custom enclosures, the surface may not be as simple as a flat panel. There may be bends, cutouts, vents, welding marks, countersunk holes, and small corners. These areas collect oil and dust easily.

Preparation Step	Why It Matters	Hidden Cost Risk
Degreasing	Removes oil from machining, bending, or handling	Poor adhesion if skipped
Sandblasting	Improves surface texture and coating grip	Extra labor and equipment time
Deburring	Removes sharp edges before coating	Coating may chip on sharp edges
Chemical pretreatment	Improves corrosion resistance	Higher process cost
Drying	Removes moisture before spraying	Pinholes or bubbles may appear

A buyer may ask, “Why does the coating cost change? It is still black powder coating.”

But black powder coating on a clean, simple flat plate is not the same as black powder coating on a welded, bent, oily, punched sheet metal enclosure.

The color is the same. The work is not.

Material-Specific Preparation Expenses

Different enclosure materials behave differently before coating.

Aluminum is common for custom electronic enclosures. It is light, clean, and good for CNC machining. But aluminum also has oxide on the surface. If the surface is not treated well, coating adhesion can suffer.

Steel and sheet metal parts can be strong and cost-effective, but they may need rust prevention and more careful pretreatment.

Mixed-material assemblies can be more complicated. If an enclosure includes aluminum panels, steel brackets, threaded inserts, or welded parts, the preparation work may not be the same for every area.

Material	Common Preparation Need	Cost Concern
Aluminum	Cleaning, oxide removal, pretreatment	Adhesion and corrosion resistance
Mild steel	Degreasing, anti-rust treatment, phosphating	Rust prevention before and after coating
Stainless steel	Surface roughening may be needed	Coating adhesion can be harder
Zinc-coated steel	Careful pretreatment	Surface reaction and adhesion risk
Mixed assemblies	Different handling for different parts	More labor and more checking

I once saw a buyer compare two quotes and say one supplier was more expensive only because of coating. But after checking the drawing, the higher quote included surface preparation for several welded corners and masked threaded studs. The lower quote did not mention them. That lower price looked better, but it was not complete.

That is the problem with hidden cost. It does not always look like cost at the start. Sometimes it looks like a good deal.

Environmental and Compliance Costs

Powder coating is often seen as cleaner than wet paint because it uses no liquid solvent in the same way. But it still has environmental and process costs.

Factories need to manage powder waste, cleaning, pretreatment chemicals, curing ovens, and local environmental rules. For export products, buyers may also ask about RoHS, REACH, or other requirements.

For electronic enclosures, this can matter. A housing may be used in industrial control, outdoor equipment, communication devices, or consumer electronics. The final customer may ask for test reports or material statements.

Cost Area	Why It Appears	Buyer Question to Ask
Powder waste	Overspray and color change cleaning	Is powder recycled or discarded?
Pretreatment chemical waste	Cleaning and conversion process	Is the process controlled?
Energy use	Oven curing needs heat	Does curing affect lead time or cost?
Compliance documents	Export and customer requirements	Can the supplier support RoHS or REACH needs?
Process records	Quality tracking	Can the batch be traced if there is a problem?

The dangerous part is not always the cost itself. The dangerous part is surprise.

If compliance is discussed early, it can be managed. If it is requested after mass production, it can become painful.

A simple black enclosure can become a complicated project when the buyer says, “Our customer now needs coating compliance documents before shipment.”

That sentence can change everything.

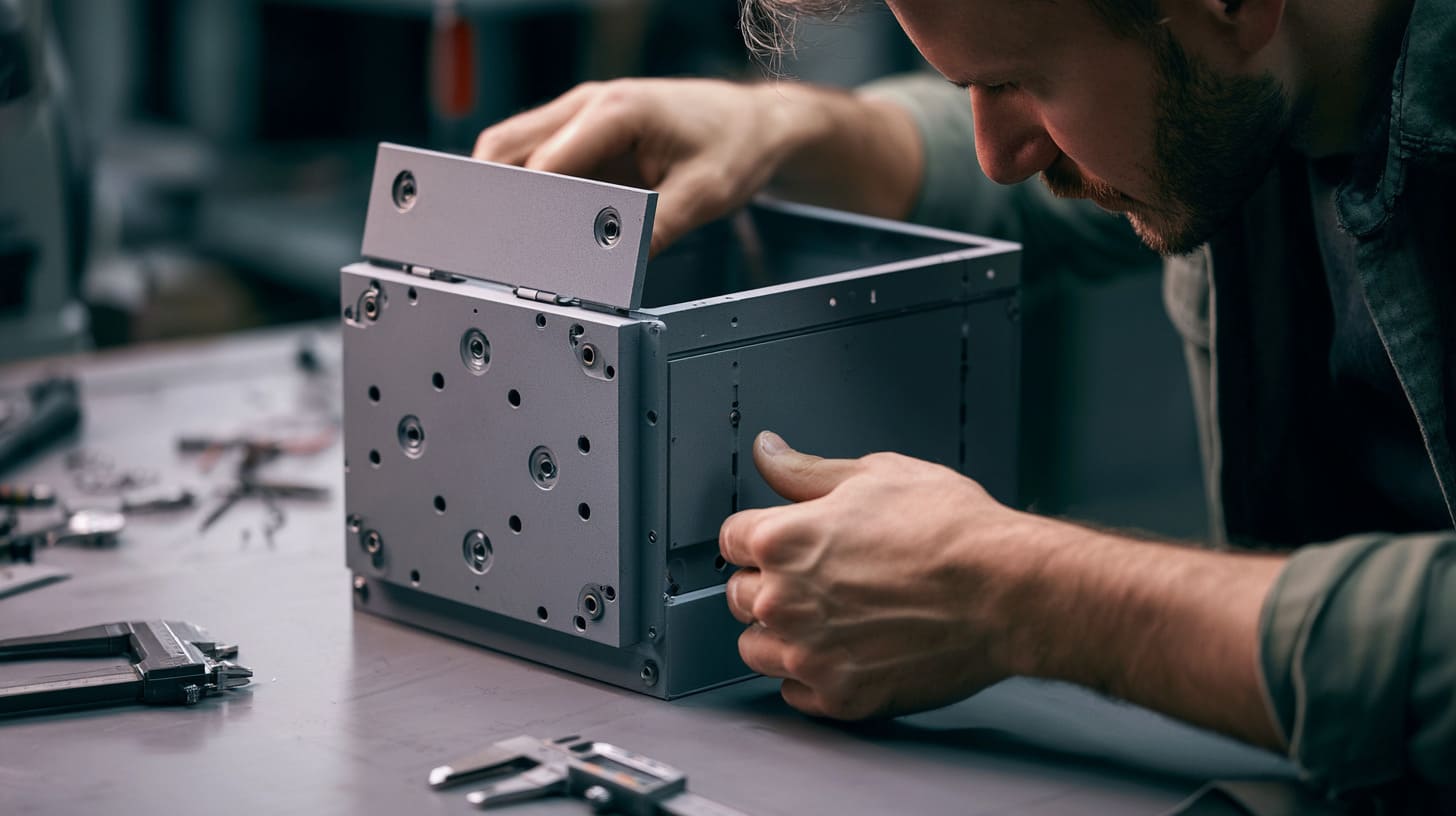

How Can Powder Coating Affect Manufacturing Tolerances?

Powder coating adds thickness.

That sounds harmless until the part needs to fit another part.

For a decorative panel, a small thickness change may not matter. For a custom electronic enclosure, it can matter a lot. Covers need to slide. Screws need to enter. PCBs need clearance. Gaskets need compression. Ports need alignment.

Powder coating does not just change the surface. It changes the relationship between parts.

The small detail I do not ignore is the inside corner, because a nice outside surface can hide a tight inside fit that will create trouble during assembly.

Coating Thickness and Dimensional Changes

Typical powder coating thickness depends on the powder type, application method, part shape, and quality requirement. In many projects, the coating can add noticeable thickness to each coated surface.

That may be fine on open surfaces. But it becomes important in these areas:

• Sliding covers
• Tight screw holes
• Internal grooves
• Hinged areas
• Snap-fit zones
• Panel overlaps
• Heat sink contact surfaces
• Grounding contact areas

Here is a simple way to think about it:

Area of Enclosure	Why Coating Thickness Matters	Possible Problem
Screw holes	Coating enters the hole	Screw feels tight or thread is blocked
Sliding cover	Coating builds on both sides	Cover becomes hard to slide
PCB mounting area	Standoffs or supports get coated	PCB height may change
Gasket surface	Surface thickness changes compression	Waterproofing may be unstable
Heat transfer area	Coating can reduce direct metal contact	Thermal performance may drop
Grounding point	Coating blocks metal contact	Electrical grounding may fail

A drawing may show a perfect fit before coating. But the real part is not just the bare metal size. The real part is the metal plus coating.

This is why a good manufacturing drawing should mention coating areas and masking areas clearly.

Hidden Rework Costs Caused by Tolerance Problems

Rework is one of the most annoying costs in mass production.

It does not always sound big at first. Someone says, “We just need to clean the holes.” Another person says, “We just need to polish this edge.” Then the order quantity turns that “just” into many hours.

Common rework after powder coating includes:

• Cleaning threaded holes
• Removing coating from grounding points
• Scraping coating from sliding areas
• Re-drilling blocked holes
• Re-tapping threads
• Polishing rough edges
• Replacing scratched parts after rework

Rework Type	Why It Happens	Why It Costs More Than Expected
Thread cleaning	Powder enters screw holes	Manual work is slow
Masking correction	Masking was not clear or failed	Parts need sorting and checking
Edge scraping	Coating builds up on edges	Risk of cosmetic damage
Re-tapping	Threads become tight	Tool wear and labor cost
Re-coating	Surface defect after rework	Longer lead time and color risk

Rework also creates a second risk: damage.

A finished powder coated part is already delicate in some areas. If workers handle it again, the chance of scratches, dents, and fingerprints increases.

This is why I prefer to solve tolerance risks before coating, not after coating.

Design Considerations to Avoid Costly Modifications

A good enclosure design does not treat coating as decoration only. It treats coating as a manufacturing condition.

Before mass production, I like to check these points:

Design Check	Why I Check It
Are the screw holes masked or coated?	It affects assembly time
Are sliding surfaces coated?	It affects user experience
Are grounding points protected from coating?	It affects electrical function
Are heat transfer areas masked?	It affects thermal performance
Are tight gaps adjusted for coating thickness?	It affects fitment
Are sharp edges rounded?	It reduces coating chipping
Is the prototype tested after coating?	It reveals real assembly problems

For OEM enclosure projects, I always prefer one coated prototype before mass production. A bare metal sample can check the structure, but it cannot fully check the finished product.

This is especially true when the customer sends a custom board, custom cable, or custom gasket. The enclosure may look correct, but the full assembly may tell another story.

A coating problem is often not a coating problem only. It can be a design problem wearing a black jacket.

The next hidden cost is not about size. It is about time. And time can be even more expensive than material.

Why Does Powder Coating Increase Production Lead Times?

Powder coating adds steps to production.

That sounds obvious. But many buyers still plan the project as if coating happens in one quick move.

In real factory work, powder coating is not just “spray and done.” Parts need preparation. Workers need to hang them. Some areas need masking. The coating line needs the right color. The oven needs curing time. The parts need cooling. Then quality control needs checking.

Each step needs time. Each step can create delay.

When a customer pushes me for a fast shipment, I do not only check whether machining or sheet metal fabrication can finish quickly; I also check whether the coating schedule can match the shipment date.

Additional Manufacturing Steps Required

Powder coating usually follows a process flow like this:

Step	What Happens	Time Risk
Surface cleaning	Oil, dust, and residue are removed	Dirty parts may need repeated cleaning
Pretreatment	Chemical or mechanical treatment improves adhesion	Process depends on material
Drying	Parts must be dry before coating	Moisture can cause defects
Hanging	Parts are placed on racks or hooks	Complex shapes need more labor
Masking	Threads or contact points are protected	More masking means more time
Powder spraying	Powder is applied evenly	Corners and cavities need care
Curing	Parts go into oven	Oven capacity affects schedule
Cooling	Parts cool before handling	Rushing may damage surface
Inspection	Finish, thickness, and adhesion are checked	Defects may require rework

For simple parts, this process can be smooth.

For custom enclosures, it can be slower because each project is different. One enclosure may have many holes. Another may have a special color. Another may need logo printing after coating.

The finish is not always the last small step. Sometimes it becomes the center of the schedule.

Production Bottlenecks During High-Volume Orders

High-volume orders do not only increase production quantity. They also increase coordination pressure.

Powder coating factories often group jobs by color, powder type, part size, and curing condition. If your order uses a standard black or white, scheduling may be easier. If your order uses a special color, the line may need cleaning before and after the batch.

That cleaning time is not free.

Bottleneck	What Causes It	How It Affects Cost
Color changeover	The line must be cleaned	More setup time
Oven capacity	Large parts take more space	Longer queue
Hanging method	Parts need stable support	More labor
Small batch custom color	Not enough quantity for efficient line use	Higher unit cost
Mixed part sizes	Different handling methods	Lower production speed
Quality hold	Defects need review	Shipment delay

This is why the same coating may cost differently at different quantities.

A small order may not use the coating line efficiently. A large order may create capacity pressure. A custom color may force a special schedule.

A buyer may think mass production always reduces the unit cost. Usually it does. But if the finish is complicated, mass production can also multiply small process problems.

How Lead Time Delays Impact Overall Project Costs

Lead time cost is hard to see in a quotation.

But buyers feel it later.

If coating delays shipment, the customer may miss a product launch, an exhibition, an installation date, or an Amazon selling season. The cost is not only the factory bill. The cost can become lost sales, angry clients, urgent air freight, or extra warehouse pressure.

Delay Type	Direct Cost	Hidden Business Cost
Coating line delay	Longer production cycle	Missed launch date
Rework delay	Extra labor	Customer loses trust
Color approval delay	More sample rounds	Project progress slows
Quality inspection hold	Shipment waits	Urgent shipping cost
Packaging delay after coating	Finished parts wait for packing	Warehouse pressure

For B2B buyers, timing is often part of the product value.

A perfect enclosure that arrives late may still hurt the project.

I say this because many customers care deeply about price at the beginning. But when the deadline gets close, they care about speed more than anything. This is not a complaint. It is human nature. Deadlines make everyone honest.

So, before mass production, I always want the coating plan to be part of the production plan, not an afterthought.

And even if the schedule looks safe, quality can still turn a smooth order into a stressful one.

What Quality Risks Can Create Unexpected Expenses After Production?

Powder coating defects are frustrating because many of them appear near the end of production.

By that time, material has already been purchased. Cutting, bending, CNC machining, welding, and assembly preparation may already be finished. If the coating fails, the factory is not fixing only a surface. The factory is protecting the value of all previous work.

This is why coating quality is not a cosmetic detail. It is a cost protection issue.

My first concern is not whether one sample looks beautiful under good light; I want to know whether the same finish can stay stable across the whole batch.

Common Powder Coating Defects

Powder coating defects can happen for many reasons. Some come from surface preparation. Some come from powder quality. Some come from spraying technique. Some come from curing conditions. Some come from part design.

Common defects include:

Defect	What It Looks Like	Possible Cause	Cost Risk
Orange peel	Uneven surface texture	Powder type, spray setting, curing issue	Customer rejects cosmetic finish
Poor adhesion	Coating peels or flakes	Bad cleaning or pretreatment	Rework or scrap
Pinholes	Tiny holes on surface	Moisture, gas, contamination	Corrosion risk
Color variation	Batch color mismatch	Different powder batch or curing condition	Assembly mismatch
Thin coating	Weak protection	Poor spray coverage	Durability issue
Thick coating	Heavy build-up	Over-spraying	Fitment issue
Edge chipping	Coating breaks at corners	Sharp edge or poor coverage	Warranty complaints

A defect may seem small in a photo. But for an OEM enclosure with a logo, a small defect can look serious to the final customer.

For example, a slight color difference between the top cover and bottom case may not affect function. But if the product is sold as a branded device, the customer may not accept it. The enclosure becomes part of the product image.

The Financial Impact of Quality Failures

Quality failure costs more than re-coating.

It can include:

• Sorting good and bad parts
• Reworking defective parts
• Re-coating rejected parts
• Replacing parts that cannot be fixed
• Delaying assembly
• Delaying packing
• Paying for urgent shipment
• Handling customer complaints
• Losing future orders

Failure Point	Visible Cost	Hidden Cost
Cosmetic rejection	Re-coating fee	Customer loses confidence
Adhesion failure	Scrap or rework	Warranty risk
Color mismatch	Sorting labor	Batch consistency problem
Late defect discovery	Production delay	Urgent delivery pressure
Poor packaging after coating	Scratches during shipment	Replacement cost

I have learned that quality problems are not always dramatic. Sometimes they are small and boring. A tiny scratch. A rough edge. A color difference. A tight screw.

But small and boring problems are still expensive when the order is large.

This is why I do not like to promise mass production too quickly after one beautiful sample. One sample can tell us the direction. A pilot run tells us the truth.

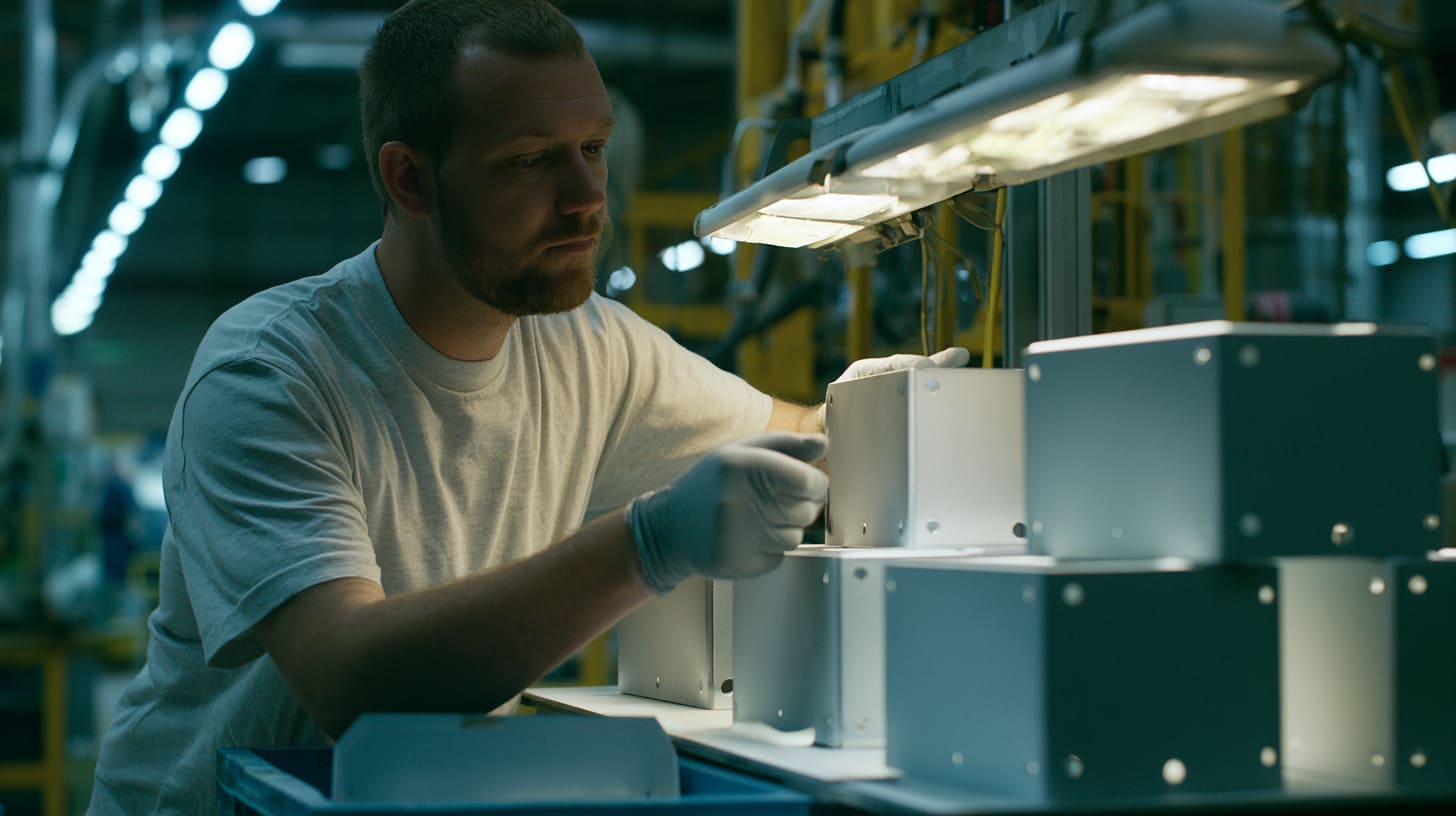

Inspection Methods That Reduce Risk

Inspection is not only about finding defects. It is about reducing arguments.

If the buyer and supplier agree on inspection standards early, both sides can work with less confusion.

Useful inspection methods may include:

Inspection Method	What It Checks	Why It Helps
Visual inspection	Color, texture, scratches, dust	Confirms appearance standard
Coating thickness test	Film thickness	Checks protection and fit risk
Adhesion test	Coating grip to surface	Reduces peeling risk
Salt spray test	Corrosion resistance	Useful for outdoor or harsh use
Color comparison	Batch consistency	Reduces mismatch complaints
Assembly test	Fit after coating	Finds tolerance problems
Packaging test	Protection during shipping	Prevents scratches and dents

For industrial enclosures, salt spray testing may be important. For indoor electronics, visual quality and assembly fit may matter more. For branded consumer-facing products, color consistency and surface texture may be the key.

Not every project needs every test.

That is the practical point.

Testing should match the use case. Too little testing is risky. Too much testing wastes money and time.

A good supplier should help the buyer choose the right level, not just say yes to everything.

But even with good quality, color choice can quietly change the whole cost structure.

How Do Color Choices and Custom Finishes Affect Total Costs?

Color looks like a design decision.

In production, color is also a cost decision.

A standard black powder coating is usually easier. The coating factory may already have the powder. The line may run it often. The workers know the process. The color approval is simple.

A custom color is different. It may need color matching, new powder purchase, minimum order quantity, sample approval, and a separate production schedule.

The question I ask is simple: does this custom color increase product value enough to justify the extra work?

Why Standard Colors Are Usually Cheaper

Standard colors are cheaper because they reduce friction.

The powder is easier to source. The coating line may already run similar orders. Setup time is lower. The risk of color mismatch is lower.

Standard Color Advantage	Why It Saves Cost
Powder is commonly available	No special purchase needed
Faster production scheduling	Easier to join regular coating batches
Lower setup cost	Less cleaning and changeover
Stable process	Workers already know the finish
Easier replacement parts	Future orders are easier to match

For many industrial enclosures, standard black, white, gray, or silver is enough.

The customer may care more about durability, fit, and delivery than a unique color. In that case, choosing a standard finish is not boring. It is smart.

A good product does not always need a special color. Sometimes it needs reliable delivery.

Hidden Expenses of Custom Colors

Custom colors can be useful for branding. I understand that.

If a customer sells a branded device, the enclosure color may need to match their product family. A unique color can help the product stand out. It can also make the product feel more professional.

But custom color has hidden costs.

Custom Color Cost	Why It Happens
Color matching fee	Supplier needs to match sample or code
Powder MOQ	Powder supplier may require minimum purchase
Sample rounds	Buyer may need several approvals
Longer lead time	Powder must be ordered or mixed
Batch control	Future orders must match the same color
Extra inventory	Unused powder may remain after production
Higher rejection risk	Slight color variation may be unacceptable

A custom color also needs clear communication.

Does the buyer provide a RAL code? A Pantone code? A physical sample? A previous product shell? A photo is not enough. Screens show colors differently. Lighting changes everything.

If a customer sends only a product image and says, “Please make it like this,” I get cautious. That request sounds simple, but it can become a long approval process.

Special Finishes That Increase Production Costs

Special finishes can make an enclosure look better. They can also add risk.

Common special powder coating finishes include:

• Textured finish
• Matte finish
• Glossy finish
• Metallic finish
• Fine sand texture
• Anti-fingerprint surface
• Multi-color coating
• Two-tone design
• Clear top coat

Finish Type	Why Customers Choose It	Production Risk
Textured finish	Hides scratches and fingerprints	Texture must stay consistent
Matte finish	Looks modern and clean	Shows oil marks more easily
Glossy finish	Looks bright	Shows scratches and surface defects
Metallic finish	Premium appearance	Color variation can be harder to control
Two-tone finish	Strong branding	More masking and more labor
Multi-color finish	Special product identity	Higher rejection risk

For aluminum enclosures, I sometimes suggest anodizing instead of powder coating if the customer wants a premium metal look and the part design fits anodizing. But if the customer needs a thick protective finish, strong color coverage, or outdoor durability, powder coating may still be better.

The finish should serve the product.

It should not become a beautiful problem.

This leads to an important question that many buyers do not ask early enough: is powder coating really the best choice for this project?

Is Powder Coating Always the Most Cost-Effective Finish for Mass Production?

Powder coating is popular for a reason.

It is durable. It covers well. It works on many metal enclosures. It can look clean and professional. It is widely used for industrial products, outdoor equipment, electrical cabinets, and sheet metal parts.

But it is not always the best finish.

A finish should match the product use, material, order quantity, appearance requirement, and budget.

I do not choose powder coating because it is popular; I choose it only when the protection, appearance, and production flow make sense together.

Comparing Powder Coating with Anodizing

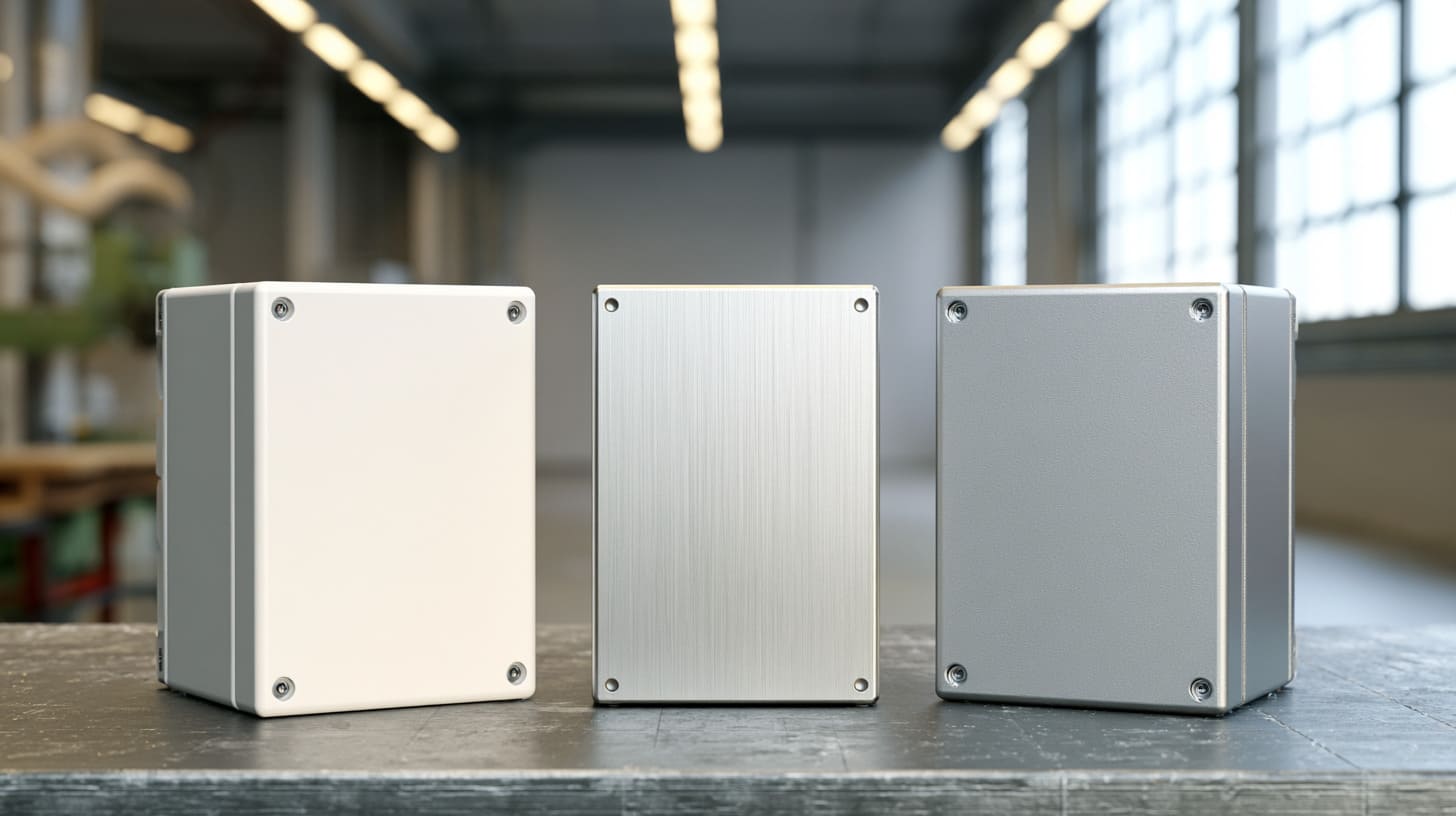

For aluminum enclosures, anodizing is often considered.

Anodizing changes the aluminum surface through an electrochemical process. It keeps a more metallic look. Powder coating adds a separate coating layer on top of the surface.

Factor	Powder Coating	Anodizing
Appearance	Solid color, many finish options	Metallic look, clean aluminum feel
Thickness impact	Adds noticeable coating layer	Usually less build-up than powder coating
Color range	Wide color range	More limited and material-dependent
Scratch behavior	Can chip if hit hard	Surface can scratch but does not peel like coating
Outdoor protection	Good with correct pretreatment	Good in many aluminum applications
Best for	Sheet metal, industrial housing, strong color needs	CNC aluminum parts, premium metal appearance
Cost concern	Masking, curing, thickness control	Material quality, color consistency

If the customer wants a black aluminum Raspberry Pi-style case with a clean metal look, anodizing may be a strong option.

If the customer wants a custom sheet metal electrical box with strong color coverage and corrosion protection, powder coating may be better.

The right answer depends on the project.

Comparing Powder Coating with Wet Paint

Wet paint is another option.

It can be useful for small batches, special colors, touch-ups, and some plastic or mixed-material situations. But it may not offer the same durability as powder coating in many industrial uses.

Factor	Powder Coating	Wet Paint
Durability	Usually strong and thick	Depends on paint system
Environmental profile	No liquid solvent like traditional paint	Solvent and VOC concerns may exist
Finish flexibility	Good, but line setup matters	Very flexible for small custom jobs
Repair	Harder to touch up perfectly	Easier to repair small areas
Mass production	Efficient when process is stable	Can be slower for durable coating systems
Best for	Metal parts, industrial use, batch production	Small runs, special colors, complex repair needs

Wet paint may look cheaper at first for some small orders. But for mass production metal enclosures, powder coating often becomes more stable and durable.

Still, I do not like automatic answers.

If the design has many masking areas, tight tolerances, and small batch custom colors, powder coating may not be as cheap as it first appears.

When Powder Coating Is the Best Choice

Powder coating is often a good choice for:

• Outdoor equipment enclosures
• Industrial control boxes
• Sheet metal electrical cabinets
• Custom aluminum enclosures needing solid color
• Branded OEM device housings
• High-volume parts with stable finish requirements
• Enclosures that need strong surface protection

Project Requirement	Why Powder Coating Helps
Strong surface protection	Thick coating gives good coverage
Consistent brand color	Powder can provide stable solid colors
Industrial appearance	Finish looks clean and professional
Outdoor use	Good pretreatment improves corrosion resistance
High-volume production	Efficient if color and process are stable
Sheet metal enclosure	Works well on fabricated metal parts

The main point is not that powder coating is bad.

It is not.

The main point is that powder coating must be calculated honestly. A good finish can protect the product. A poorly planned finish can damage the budget.

So how can engineers and buyers avoid these hidden costs before production starts?

How Can Engineers Reduce Hidden Powder Coating Costs Before Production?

The best time to reduce powder coating cost is not after production.

It is before the drawing is released.

Once the design is fixed, many costs are already locked in. Hole positions, gaps, threads, sharp corners, masking areas, material choice, color choice, and surface requirements all affect the final cost.

Good planning does not remove all risk. But it removes many stupid surprises.

Before I accept a mass production plan, I like to check whether the design, coating method, assembly process, and delivery schedule are all looking at the same reality.

Involve the Coating Supplier Early in the Design Stage

Many coating problems begin before coating.

They begin in the design.

An engineer may design a tight gap because it looks clean. A buyer may request a custom color because it matches the brand. A supplier may quote quickly because they want to win the order. Then the coating team receives the parts and finds the real problem.

Early review helps.

Design Topic	What to Confirm Early
Coated and uncoated areas	Which surfaces need coating?
Masking areas	Which holes, threads, or contact points must stay bare?
Color standard	RAL, Pantone, or physical sample?
Surface texture	Smooth, matte, fine texture, or sand texture?
Tolerance allowance	Does coating thickness affect fit?
Assembly sequence	Will coating happen before or after assembly?
Packaging method	How will the finish be protected during shipping?

A supplier with real production experience may give simple but useful suggestions:

• Increase clearance slightly
• Mask grounding points
• Avoid coating inside some threaded holes
• Use standard powder when color is not critical
• Round sharp edges before coating
• Test one coated sample before mass production
• Change a finish method if another method fits better

These suggestions may not sound exciting. But they save money.

In manufacturing, boring details often protect the whole project.

Build Prototypes Before Mass Production

A prototype is not only for shape.

A prototype should test the full product experience.

For coated enclosures, I prefer the customer to test a finished sample, not only a bare metal sample. The coated sample shows real color, texture, assembly fit, screw feel, surface protection, packaging risk, and customer impression.

Prototype Check	What It Reveals
Assembly test	Whether parts still fit after coating
Screw test	Whether threads need masking or rework
Color check	Whether the finish matches expectation
Surface check	Whether texture and gloss are acceptable
Logo test	Whether printing or engraving works well on finish
Heat test	Whether coating affects thermal contact
Packaging test	Whether surface survives shipping

A buyer may feel a prototype slows the project. I understand that feeling.

But a failed mass production batch slows the project much more.

For a small order, the risk may be acceptable. For a large OEM order, skipping a coated prototype is like driving at night without headlights. You may still arrive, but why take that risk?

Create a Complete Cost Analysis Checklist

A good powder coating cost analysis should include more than the coating price.

Here is the type of checklist I like to use before mass production:

Cost Area	Questions to Ask Before Production
Material	Is the material suitable for powder coating?
Surface preparation	Does the part need degreasing, blasting, or pretreatment?
Masking	Which holes, threads, contacts, or surfaces need protection?
Coating thickness	Will the thickness affect assembly or tolerance?
Color	Is it standard or custom? Is there a powder MOQ?
Finish texture	Does the texture increase setup or inspection needs?
Inspection	What tests are required?
Compliance	Are RoHS, REACH, or other documents needed?
Lead time	Does coating fit the project schedule?
Rework plan	What happens if defects appear?
Packaging	Can the coating survive shipping?
Future orders	Can the same color and finish be repeated?

For MaidaTech projects, I also care about communication speed. Many of our customers are in Europe, North America, Japan, and South Korea. Time zones already create some delay. If coating details are unclear, each question may take one more day. That is expensive in a quiet way.

This is why I prefer clear drawings, clear finish notes, and early sample approval.

A good supplier should not only make the enclosure. The supplier should help the buyer avoid avoidable mistakes.

Conclusion

What Should Buyers Really Calculate Before Approving Powder Coating for Mass Production?

Powder coating is not just a color on the surface.

It is preparation. It is thickness. It is masking. It is curing. It is inspection. It is lead time. It is packaging. It is communication. It is also risk control.

I think this way because I have seen how small finish details can become big production problems. A tight screw hole looks small. A color sample delay looks small. A missed masking note looks small. A rough edge looks small.

But mass production makes small things loud.

If you order 20 samples, a small problem is a discussion. If you order 5,000 enclosures, the same problem becomes labor, delay, cost, and sometimes an unhappy customer.

That is why I believe buyers should calculate powder coating by total cost, not only by unit coating price.

Before approving powder coating for mass production, I would calculate:

What to Calculate	Why It Matters
Surface preparation	It affects adhesion and durability
Coating thickness	It affects fit and assembly
Masking labor	It affects cost and production speed
Custom color cost	It affects MOQ and lead time
Quality inspection	It reduces rejection risk
Rework possibility	It protects the budget
Packaging protection	It prevents shipping damage
Schedule impact	It protects the project deadline
Future repeat orders	It keeps the finish consistent

I do not write this to make powder coating sound scary. Powder coating is a very useful finish. For many custom aluminum enclosures, sheet metal enclosures, and industrial device housings, it is one of the best choices.

But it needs respect.

A finish that looks simple can carry many hidden decisions.

At MaidaTech, I prefer to discuss these details before production starts. I would rather spend more time checking the drawing, coating notes, masking points, and sample approval than spend more time explaining rework later.

If you are planning a custom aluminum enclosure, sheet metal enclosure, plastic electronic housing, or OEM branded enclosure for mass production, do not only ask, “How much is powder coating per piece?”

Ask a better question:

What will this finish really cost after preparation, tolerance control, lead time, inspection, and risk are included?

That question may save your project more money than a cheaper unit price ever could.

If you already have a drawing, sample, or enclosure idea, you can send it to MaidaTech. I can help you review the structure, finish choice, logo process, packaging method, and possible hidden production risks before you move into mass production.
