What Is a NEMA 4X Enclosure?

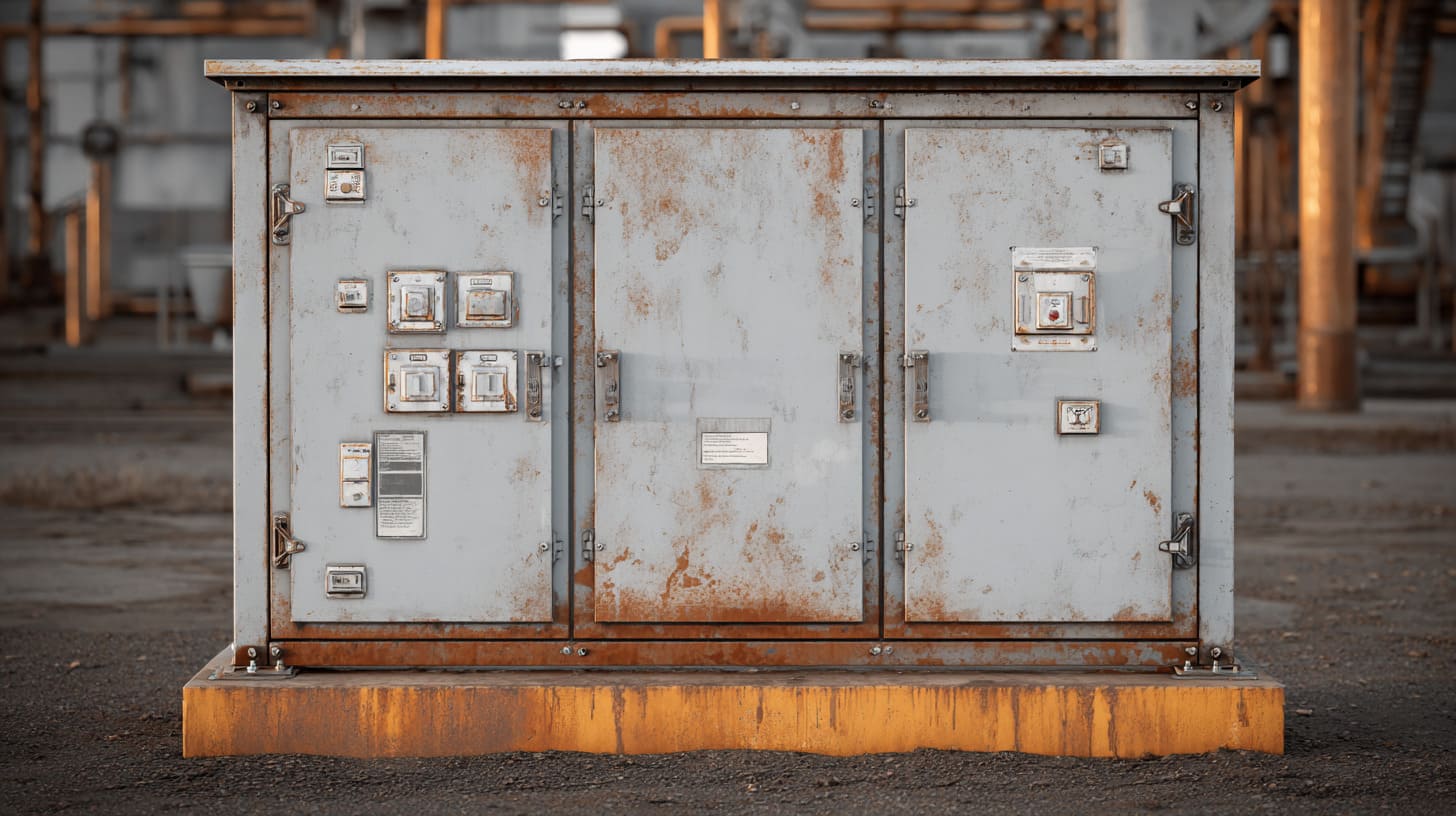

Power control panels don’t get much attention—until they fail. The last time I checked a site for a client in Florida, I noticed something odd. The enclosure looked solid from afar, but rust was eating away at the bottom edges. Just weeks after installation.

A NEMA 4X enclosure is a protective box designed to keep out dust, water, and even corrosive agents, ideal for harsh indoor and outdoor environments.

That small oversight turned into a costly repair. Since then, I’ve been helping product engineers pick enclosures that don’t just look good on paper—but hold up when the environment starts fighting back.

What is the difference between a NEMA 3R and a 4X enclosure?

It’s not just about numbers—it’s about survival.

NEMA 4X offers a higher level of protection against water, dust, and corrosion compared to NEMA 3R, which only guards against rain and sleet.

Comparison Table

The 4X rating steps into the ring when nature gets nasty. Think salt spray, chemical exposure, or high-pressure washdowns. That’s where 3R just can’t compete.

What materials are used for NEMA 4X enclosures?

This one comes down to environment and budget.

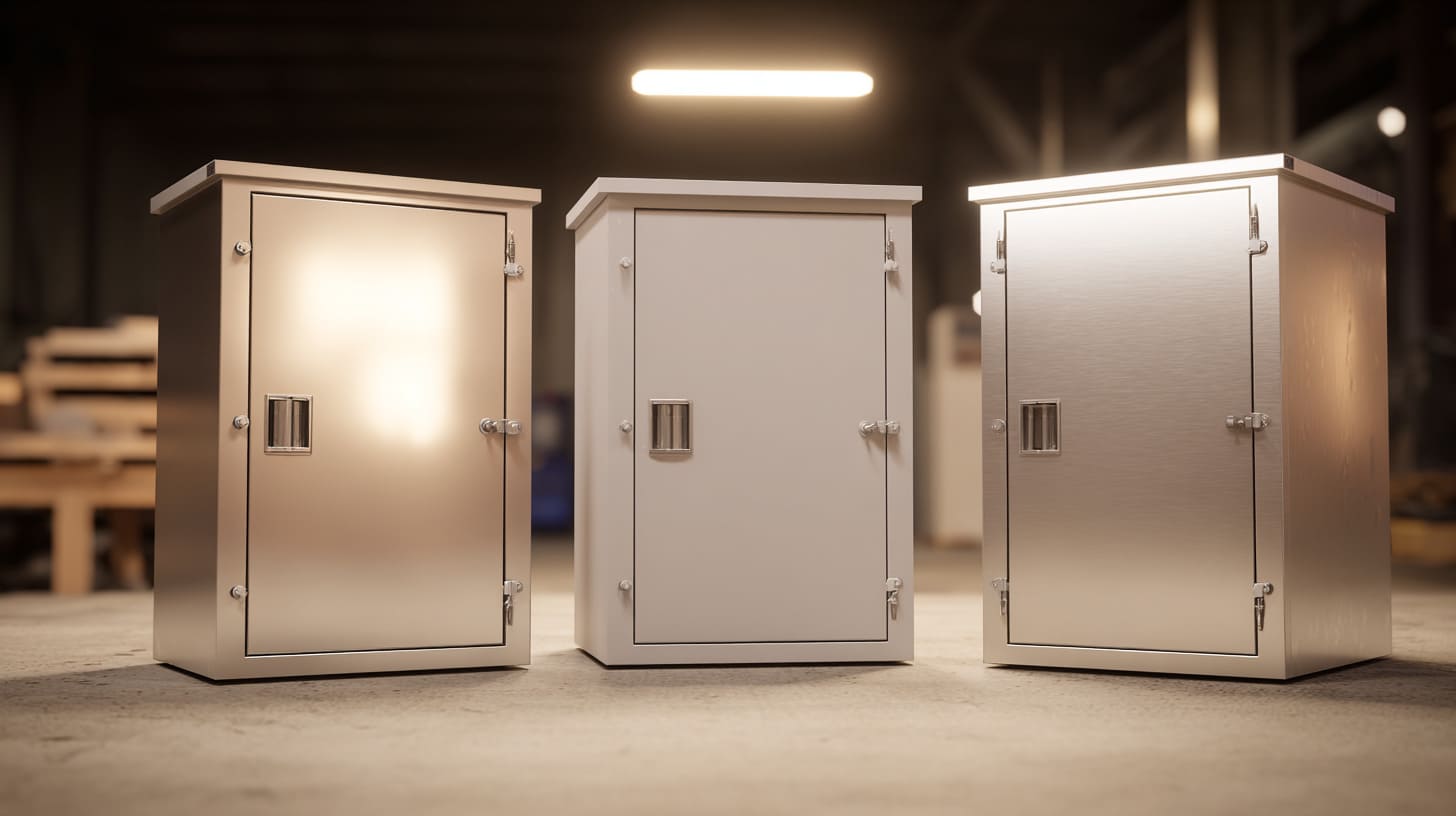

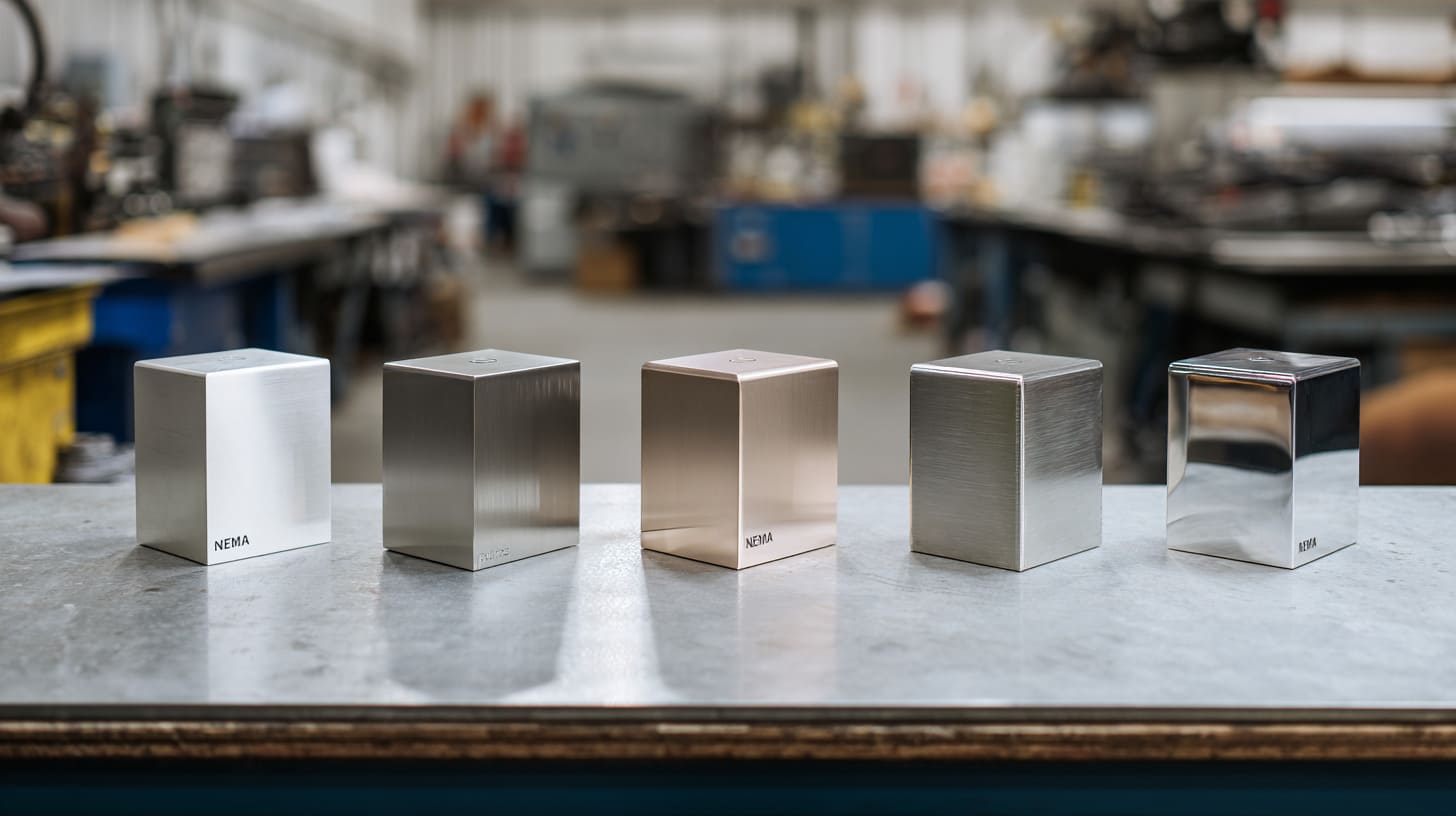

NEMA 4X enclosures are made from stainless steel, fiberglass-reinforced polyester, polycarbonate, or aluminum—each with pros and cons.

I’ve worked with clients who chose stainless steel for its toughness near the ocean. Others picked polycarbonate to save cost in industrial washdown rooms. Your material defines your battlefield.

Material Comparison

Each material offers a different balance between protection, strength, and ease of installation. Here's a quick breakdown:

When choosing a material, I always ask clients where the enclosure will live—salty coastal air? Chemical-heavy factory? Humid greenhouse? The environment usually decides for you.

Is a NEMA 4X rating waterproof?

Here’s where words get tricky.

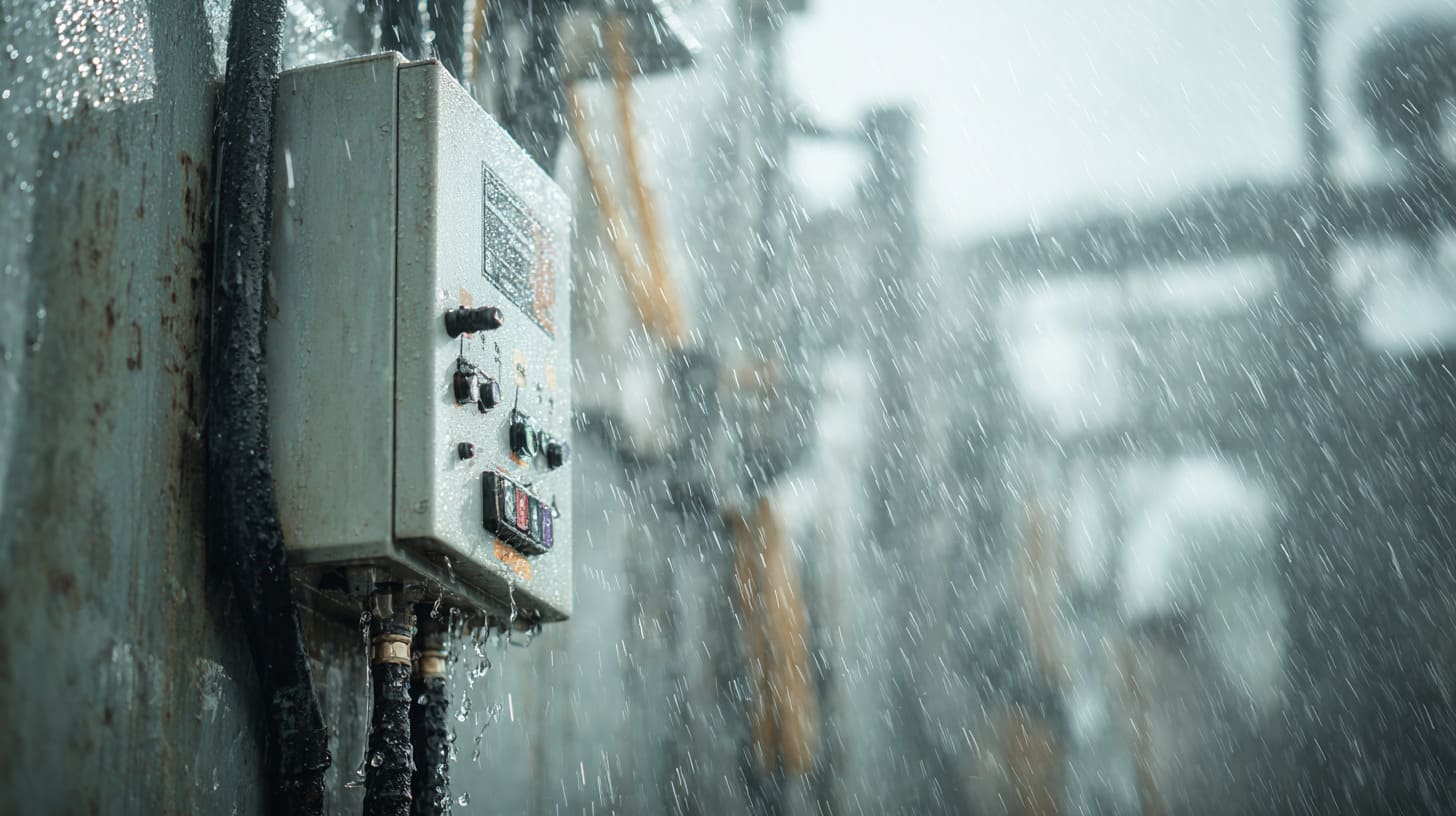

NEMA 4X enclosures are not fully submersible, but they are watertight against hose-directed water, rain, and splashes.

You can wash them down. Rain can slam sideways. But if you dunk them underwater? That’s not their job. I’ve seen folks confuse 4X with IP68—and fry their electronics in the process.

Can NEMA 4X enclosures be modified?

Absolutely—just don’t ruin the protection in the process.

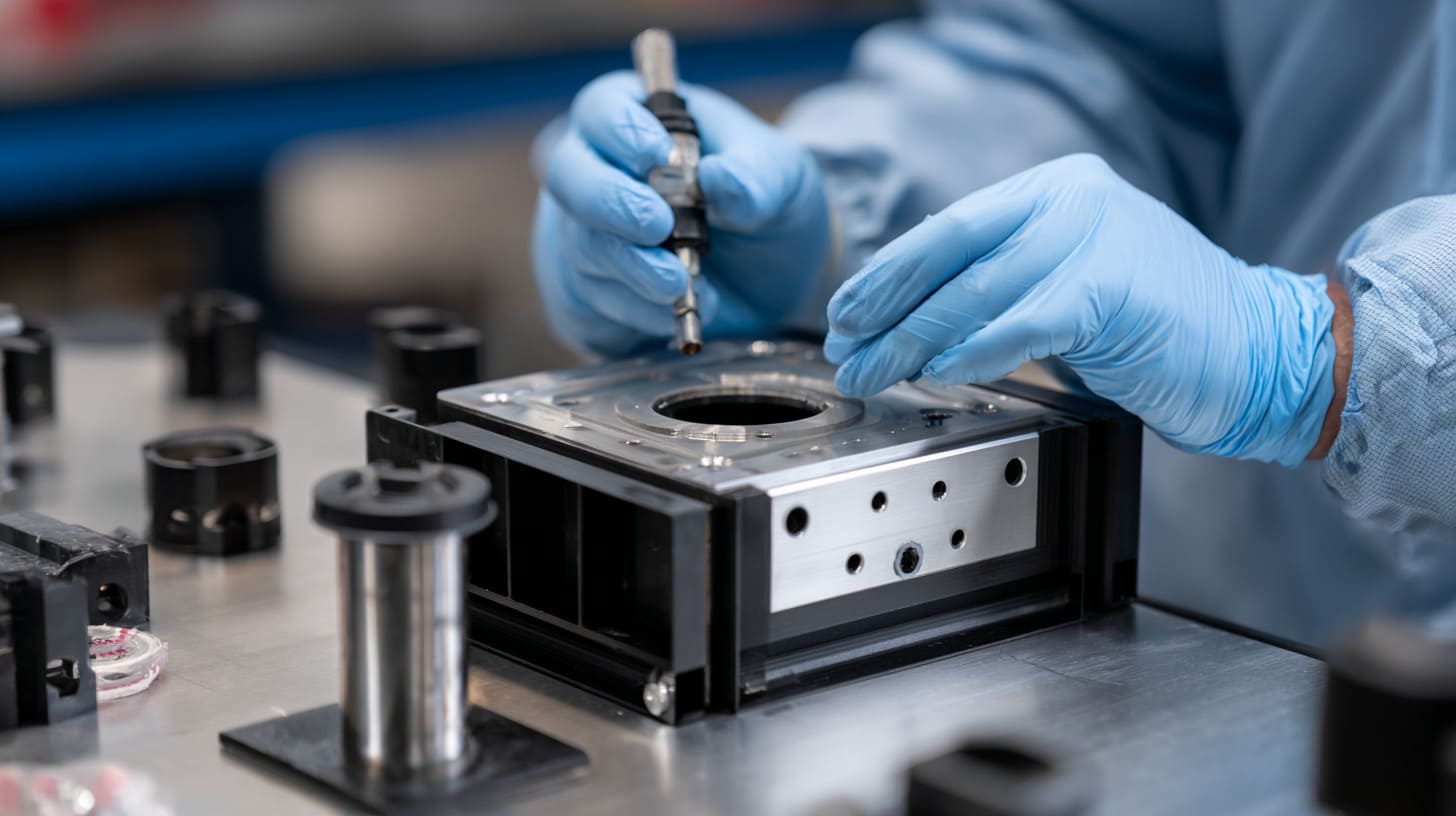

Yes, NEMA 4X enclosures can be customized with cutouts, vents, or mounting features, but the modifications must preserve the seal and integrity.

I always remind clients: cutting a hole in a sealed box is like poking a hole in a boat. You’d better seal it properly again. We usually use silicone gaskets or re-sealable flanges to keep it rated.

What does the "4X" rating mean in a NEMA enclosure?

Let’s decode that mysterious “X.”

The “4” means protection from water, dirt, and windblown dust, while the “X” adds corrosion resistance for tougher environments.

In our industry, that little “X” often makes or breaks a project near chemicals or coastal regions. Think seafood plants, car washes, or salt mines.

How is a NEMA 4X enclosure different from NEMA 4 and NEMA 12?

All enclosures are not created equal.

NEMA 4X is like NEMA 4 plus corrosion resistance. NEMA 12 is for indoor use only, with no water protection.

Here’s how I explain it to buyers like Davide:

• NEMA 12: Indoors, dust-tight. Great for factories.
• NEMA 4: Indoors or outdoors. Resists rain and splashes.
• NEMA 4X: Same as 4, but laughs in the face of saltwater or chemicals.

Where are NEMA 4X enclosures commonly used?

Everywhere the environment fights back.

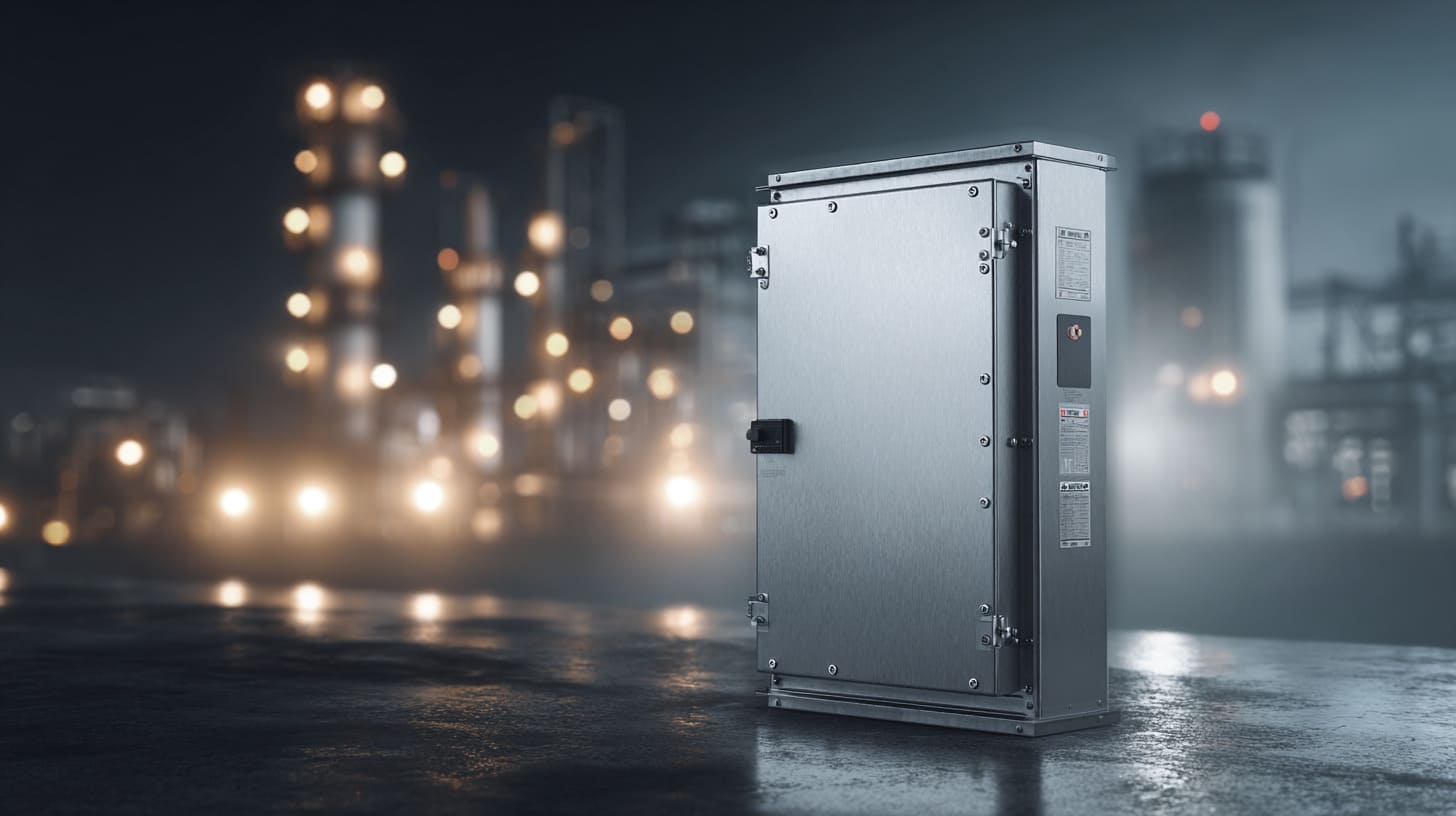

You’ll find NEMA 4X enclosures in food processing plants, marine settings, car washes, and chemical processing areas.

A client once used ours in a dairy factory—they had cleaning agents stronger than coffee! The enclosure stood strong while everything else corroded.

Is a NEMA 4X enclosure waterproof or just water-resistant?

It’s water-resistant—but fiercely so.

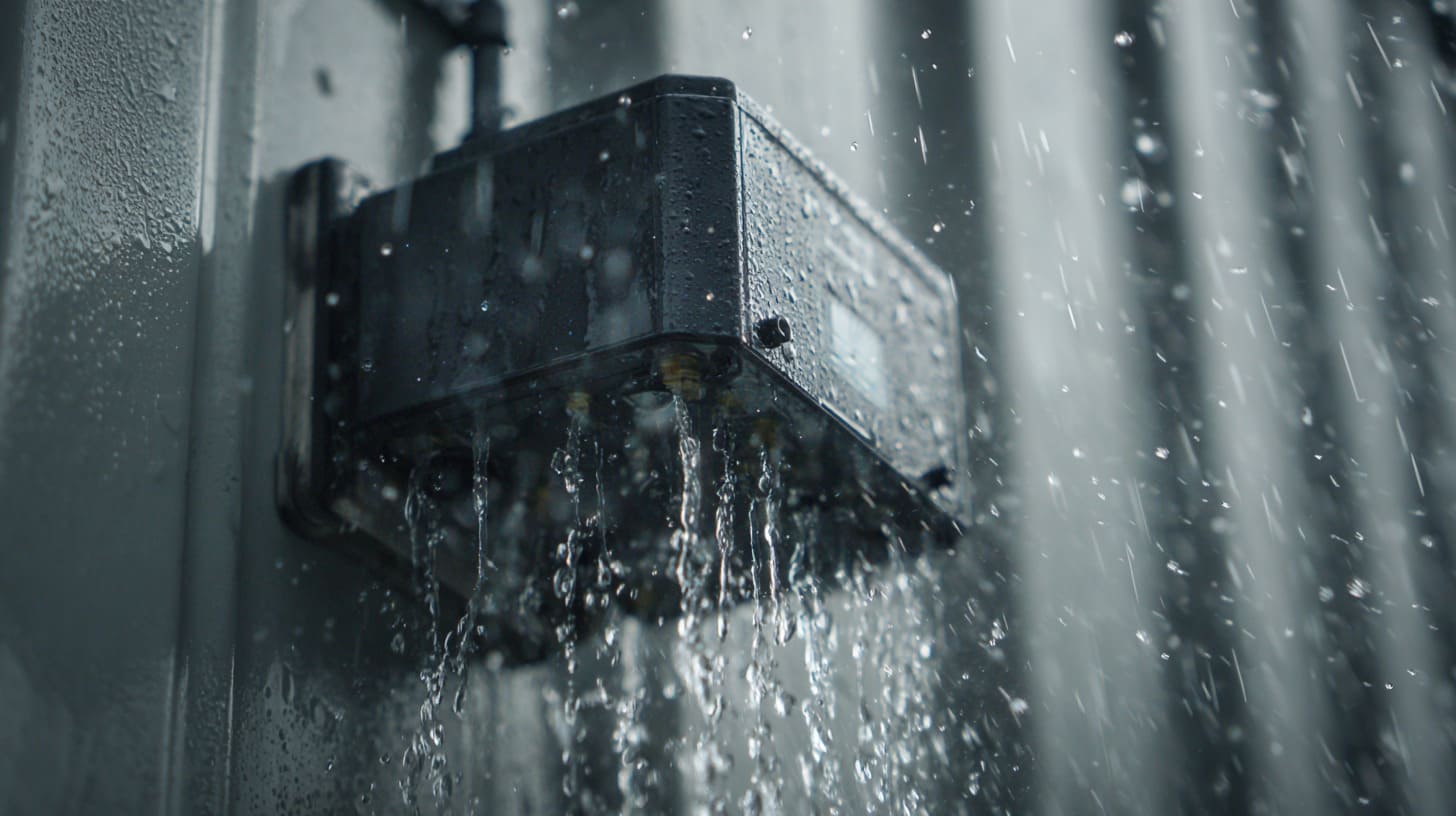

NEMA 4X enclosures resist heavy sprays, splashes, and hose-downs, but they are not submersible like IP68-rated boxes.

It’s like a raincoat versus a wetsuit. You can get soaked on the surface—but if you plan to dive, you need a different solution.

Can a NEMA 4X enclosure be used outdoors all year round?

Short answer: Yes.

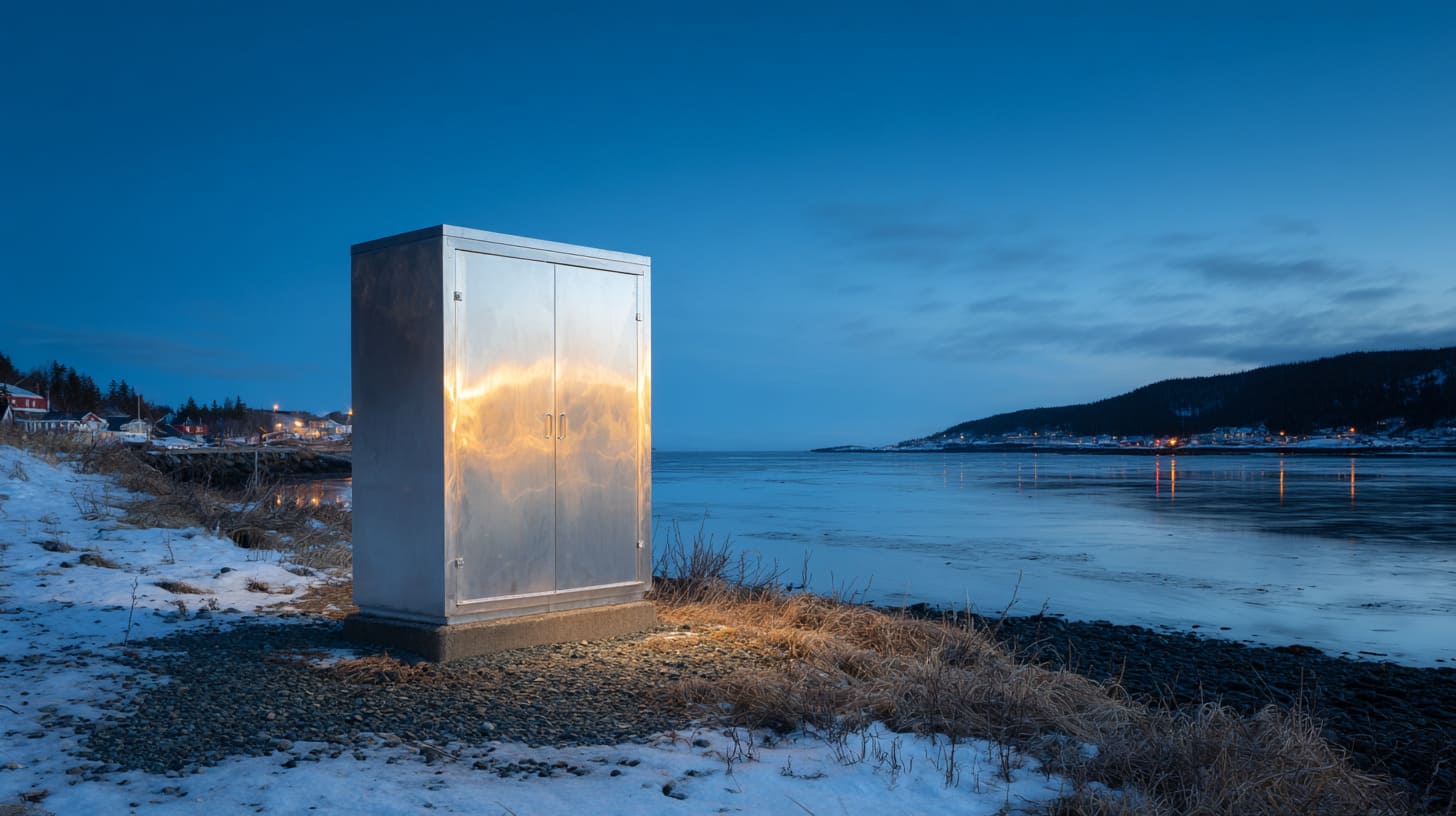

NEMA 4X enclosures are designed for permanent outdoor use, even in harsh climates like snow, rain, salt air, or industrial zones.

We’ve shipped aluminum enclosures to Norway, stainless ones to coastal Texas. They’ve endured every season and stayed sealed.

What materials are best for NEMA 4X enclosures—stainless steel, plastic, or aluminum?

It depends on your battlefield.

Stainless steel offers the best corrosion resistance, polycarbonate is lightweight and economical, and aluminum balances both.

John from Canada once needed a sleek design for a rebranded marine tech project. We used powder-coated aluminum—strong, light, and clean for engraving. His client loved it.

How do NEMA 4X enclosures compare to IP66 and IP68 enclosures?

Ah, the alphabet soup of protection ratings.

NEMA 4X is similar to IP66 in water and dust protection, but only IP68 can handle full immersion.

Here’s a quick cheat sheet:

So if your box might get dunked—go IP68. If it needs to survive chemicals—go NEMA 4X.

What should I consider when customizing a NEMA 4X enclosure for electronics?

Don’t just think “box”—think system.

Focus on sealing, thermal management, mounting, cable entry points, and internal layout to ensure your electronics stay safe and functional.

We often add:

• Custom holes with waterproof glands
• Heatsinks or vents for cooling
• Interior trays for clean wiring
• Laser engraving for branding

It’s not about making it pretty. It’s about making it work in the wild.

Conclusion

NEMA 4X is tough, but smart design makes it bulletproof.
